Left Multifunction Switch C1 (Instrument Panel) 4 Way

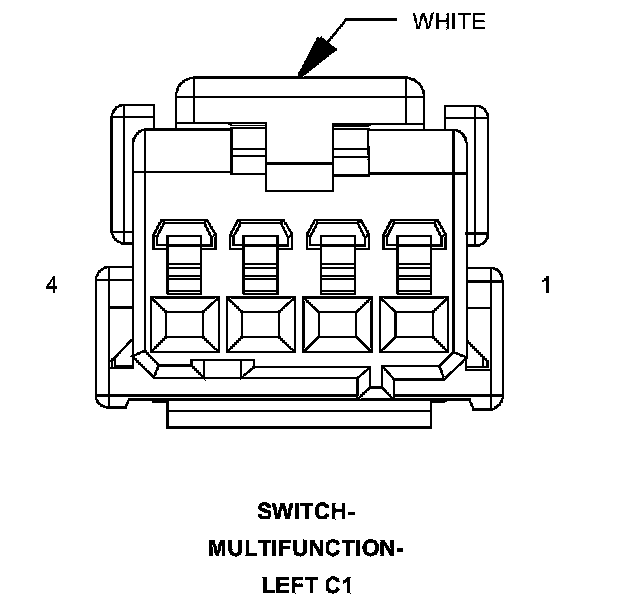

Connector C1 - (INSTRUMENT PANEL) 4 WAY

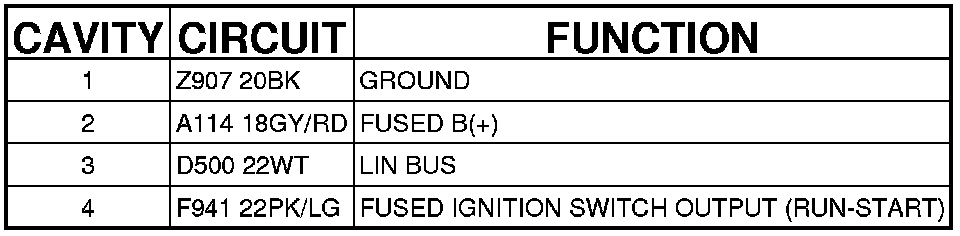

SWITCH-MULTIFUNCTION-LEFT - (INSTRUMENT PANEL) 4 WAY
