Driver Door Module C3 (Memory) (Driver Door) 12 Way

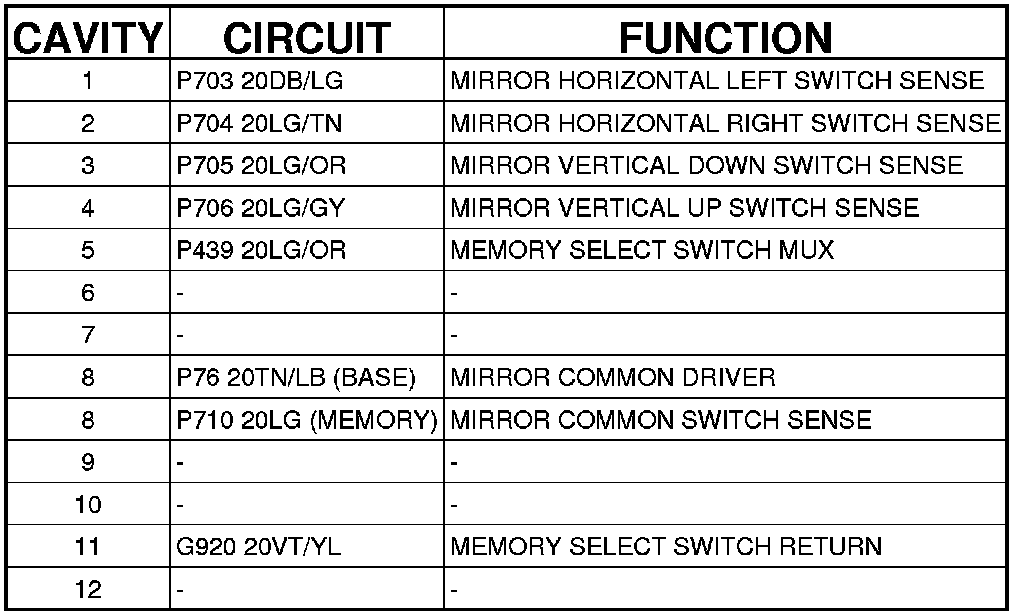

Connector C3 (MEMORY) - (DRIVER DOOR) 12 WAY

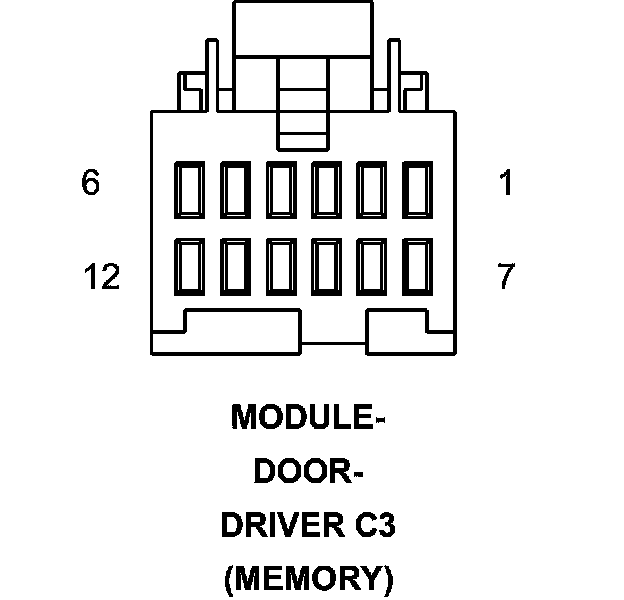

MODULE-DOOR-DRIVER (MEMORY) - (DRIVER DOOR) 12 WAY
