Memory Seat Module C3 (Driver Seat) 14 Way

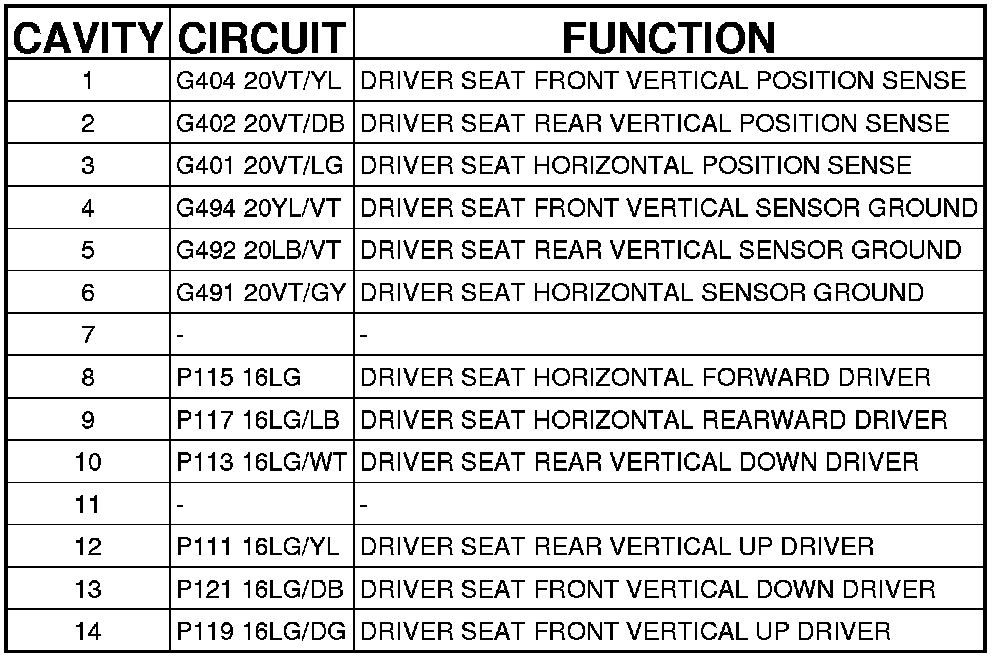

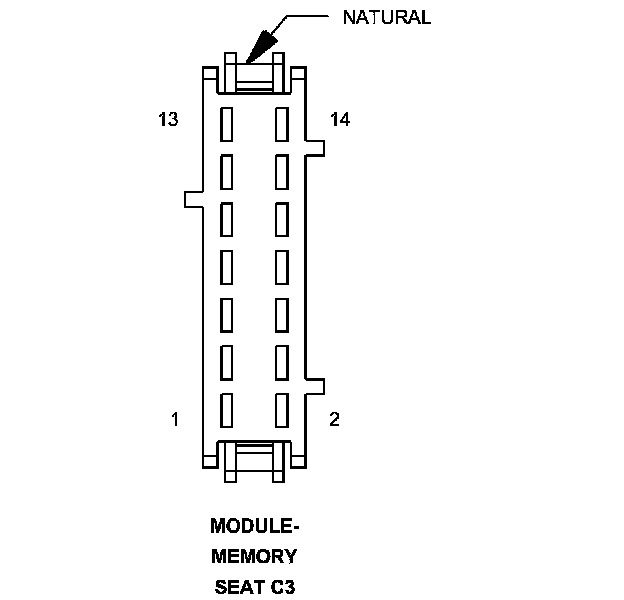

Connector C3 - (DRIVER SEAT) 14 WAY
MODULE-MEMORY SEAT - (DRIVER SEAT) 14 WAY
