Memory Seat Module C5 (Driver Seat) 6 Way

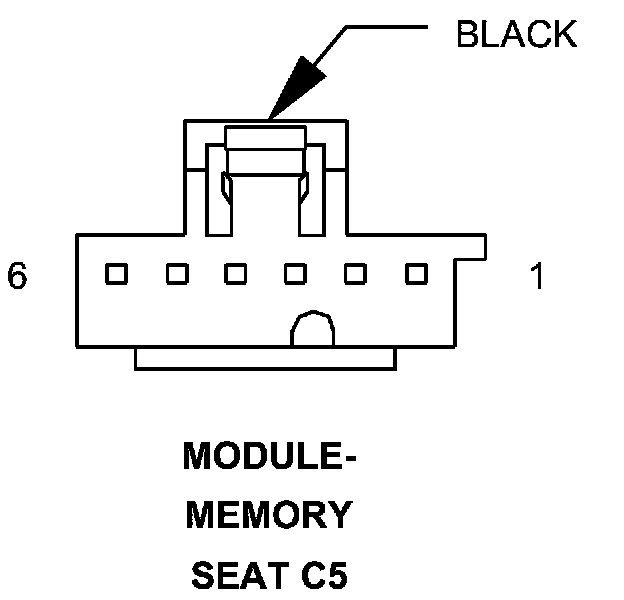

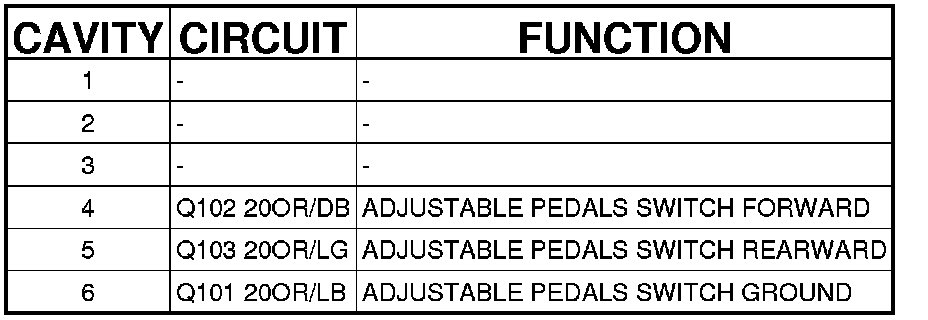

Connector C5 - (DRIVER SEAT) 6 WAY
MODULE-MEMORY SEAT - (DRIVER SEAT) 6 WAY
