Heated Seat Module C1 (Front Seat) 6 Way

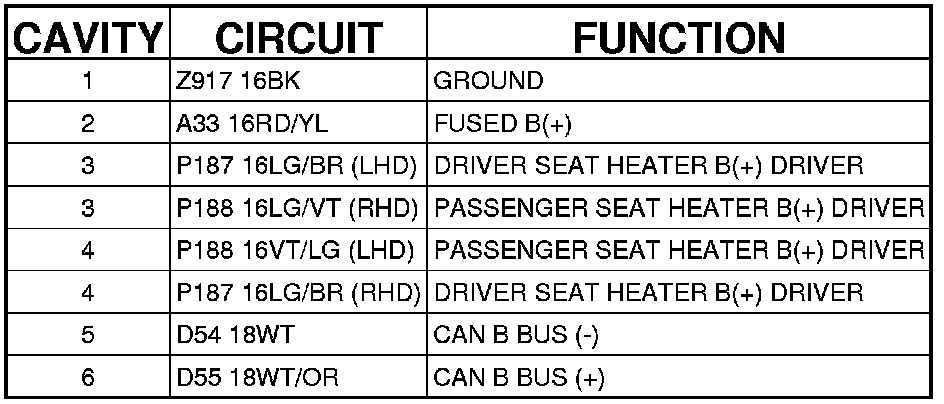

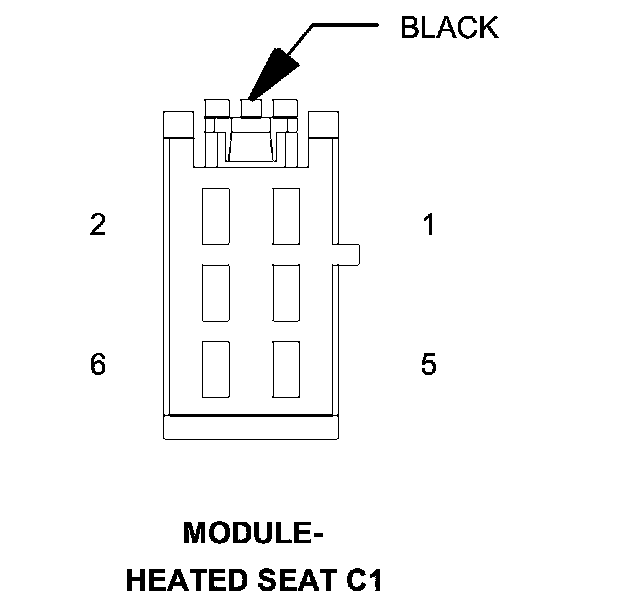

Connector C1 - (FRONT SEAT) 6 WAY
MODULE-HEATED SEATS - (FRONT SEAT) 6 WAY
