Trailer Tow Module C4 (Underbody) 8 Way

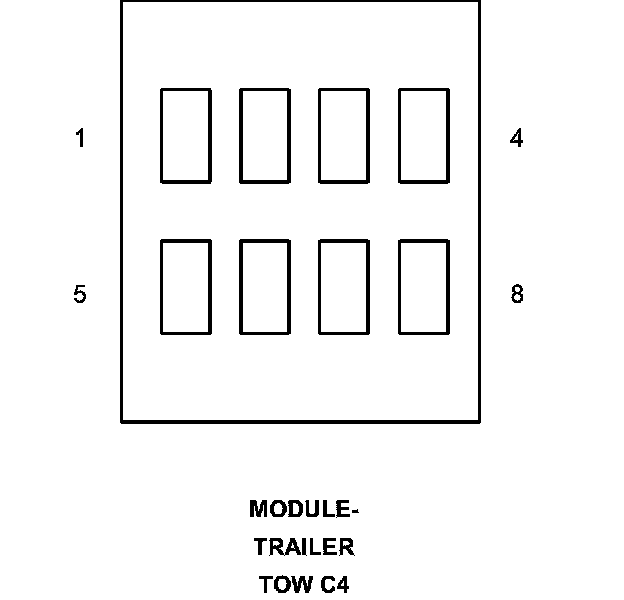

Connector C4 - (UNDERBODY) 8 WAY

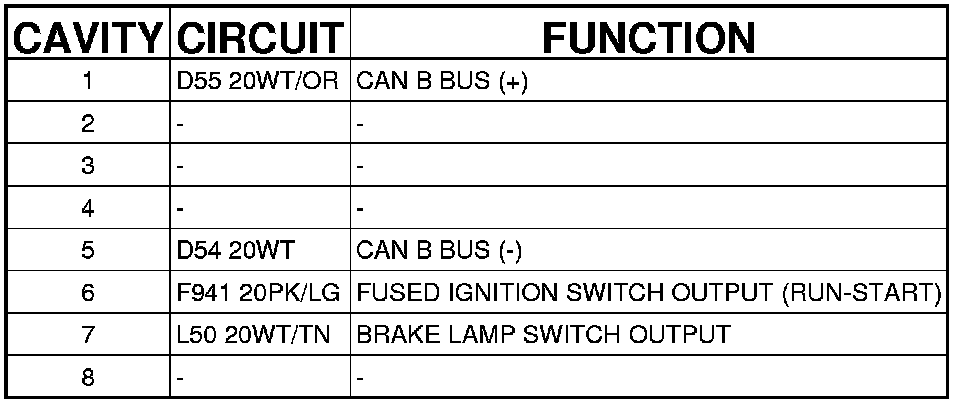

MODULE-TRAILER TOW - (UNDERBODY) 8 WAY
