Crankshaft Position Sensor: Diagrams

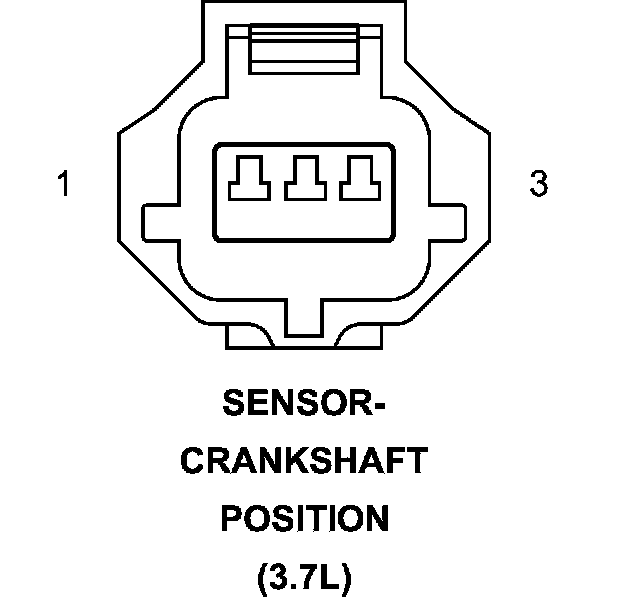

Connector (3.7L) - (INJECTOR) 3 WAY

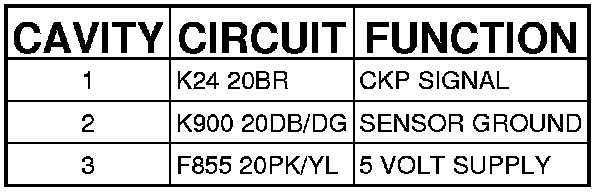

SENSOR-CRANKSHAFT POSITION (3.7L) - (INJECTOR) 3 WAY
