Manifold Pressure/Vacuum Sensor: Diagrams

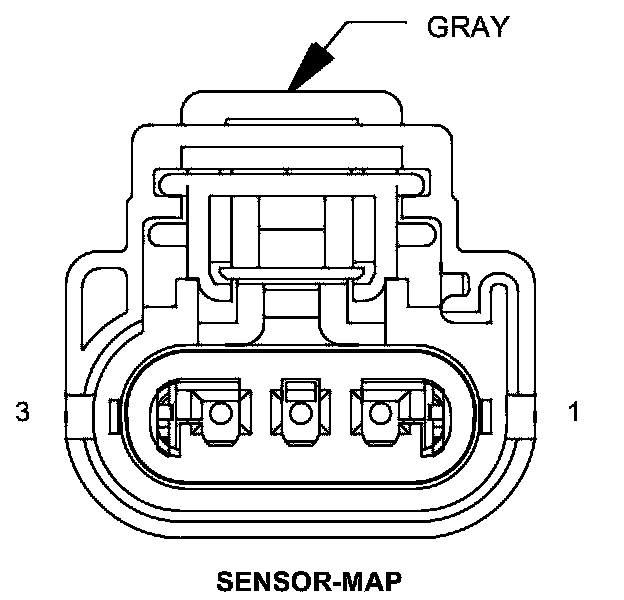

Connector - (INJECTOR) 3 WAY

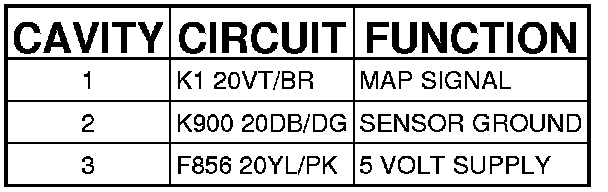

SENSOR-MAP - (INJECTOR) 3 WAY
