NAG1 Automatic Transmission
SPECIFICATIONS

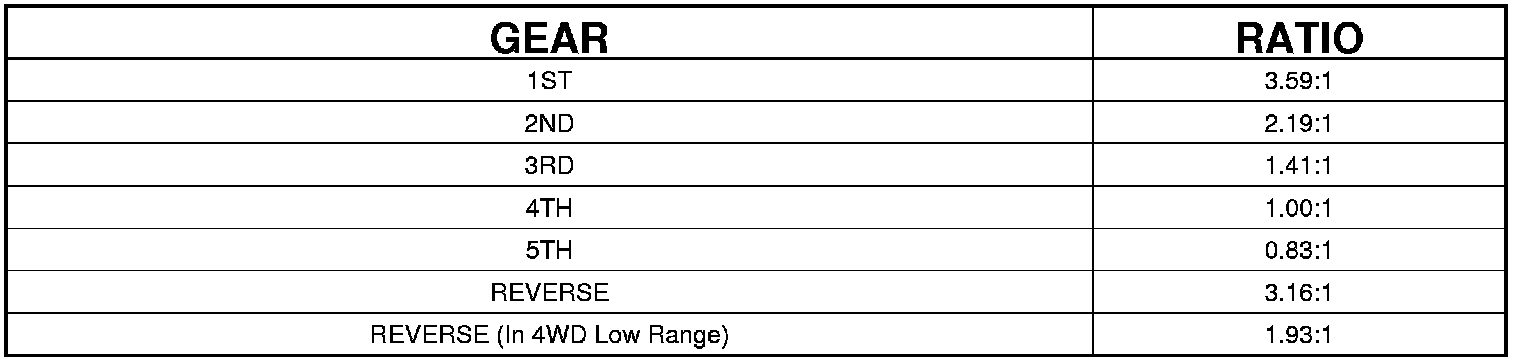

GEAR RATIOS
SPECIFICATIONS

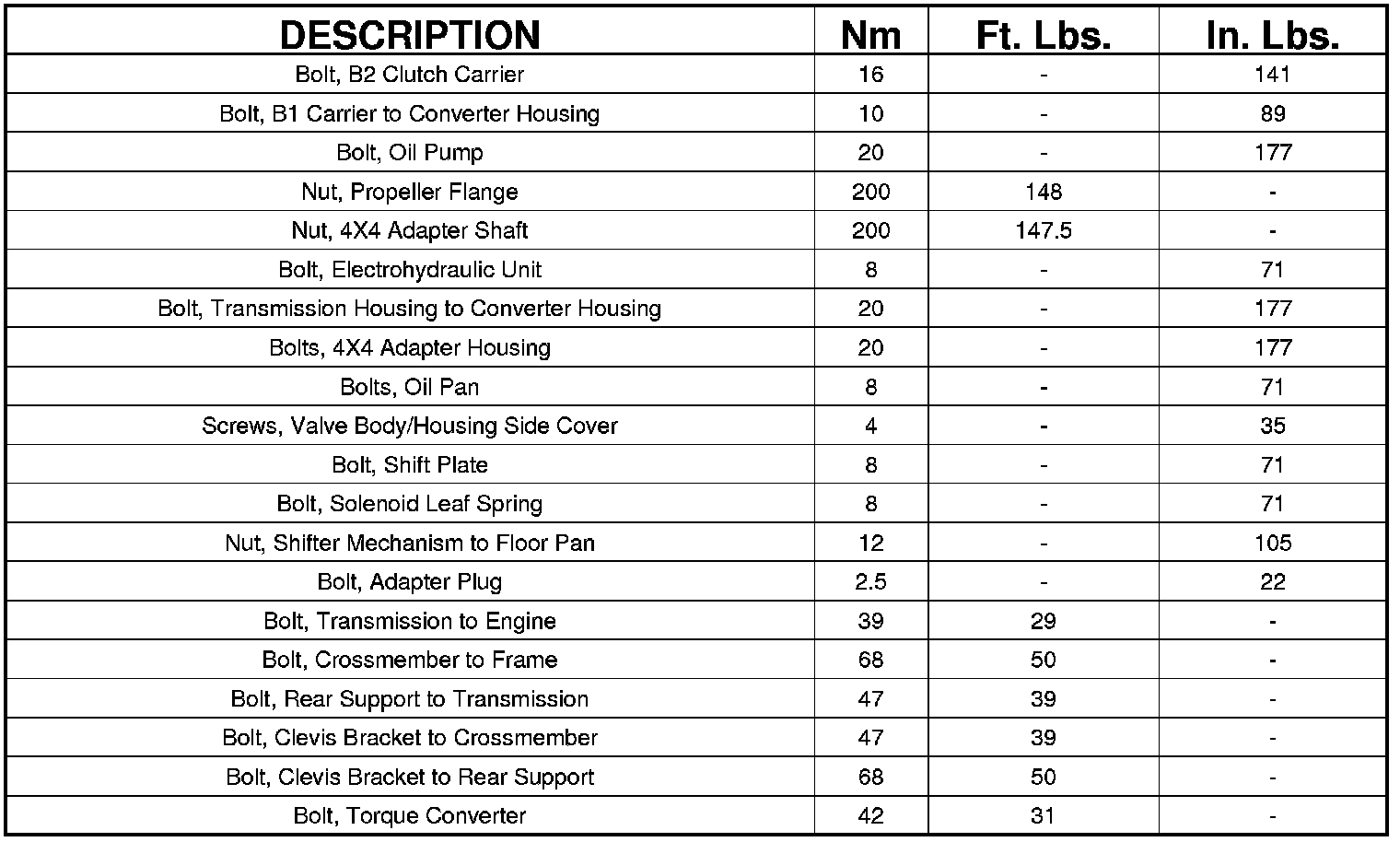

TORQUE SPECIFICATIONS

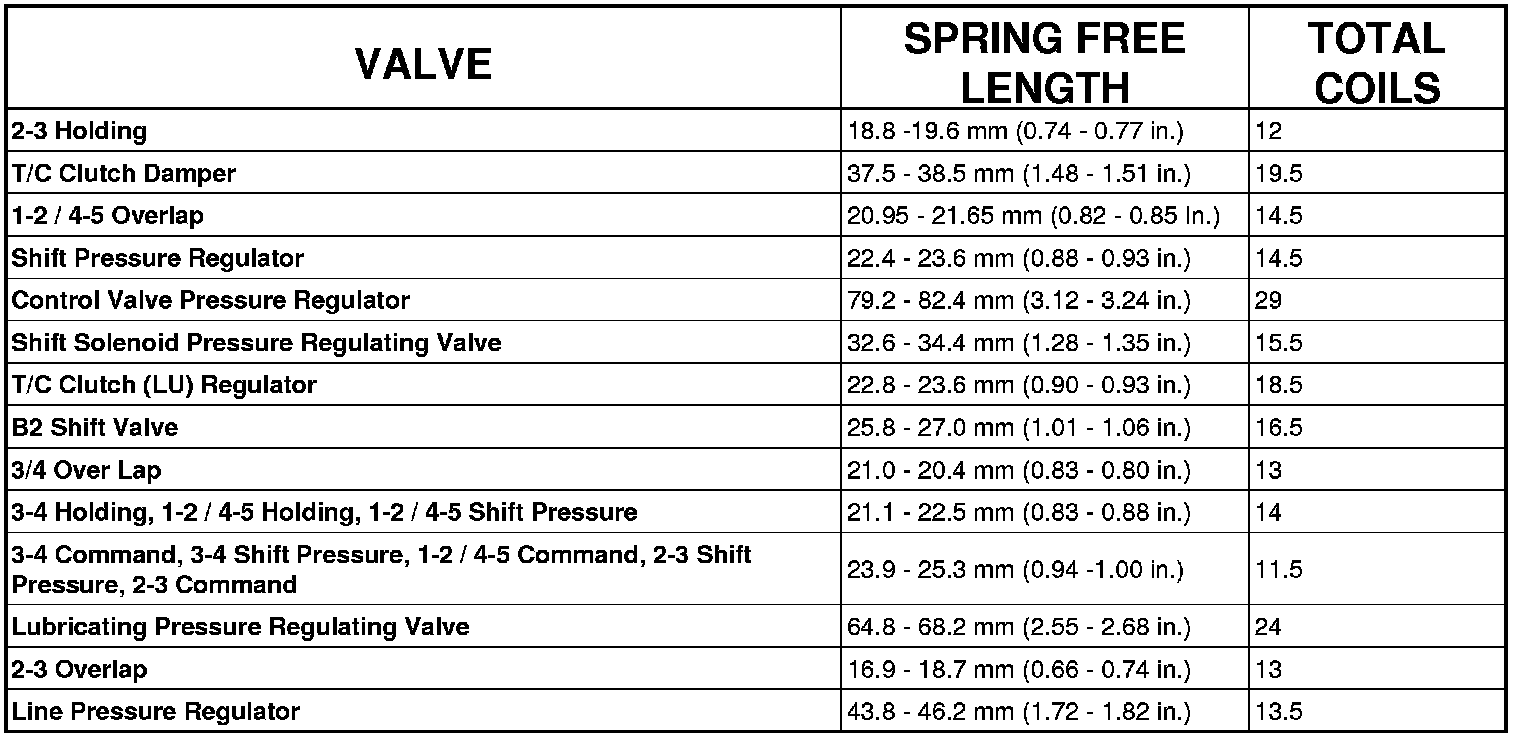

NAG1 VALVE BODY SPRING DIMENSION
