Fluid Pressure Sensor/Switch, A/T

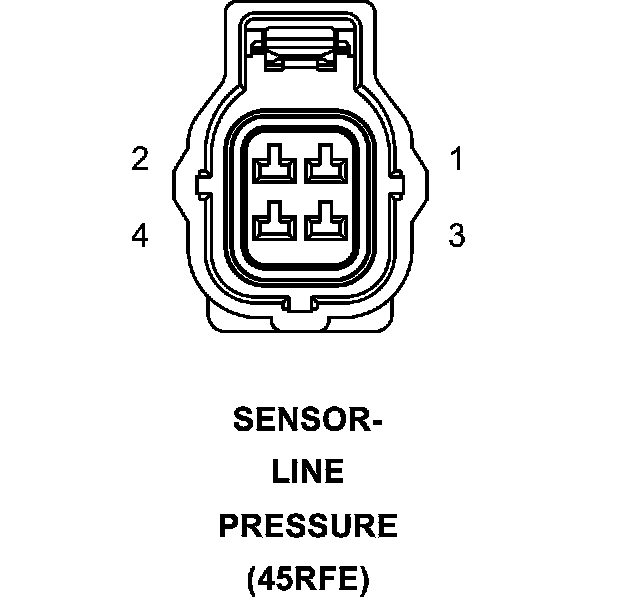

Connector (45RFE) - (INJECTOR) 4 WAY

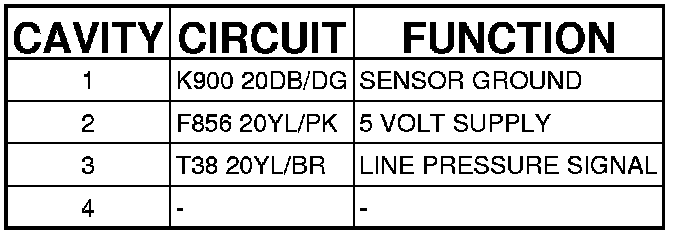

SENSOR-LINE PRESSURE (45RFE) - (INJECTOR) 4 WAY
