Video Screen Module 1 C1 (Overhead) 10 Way

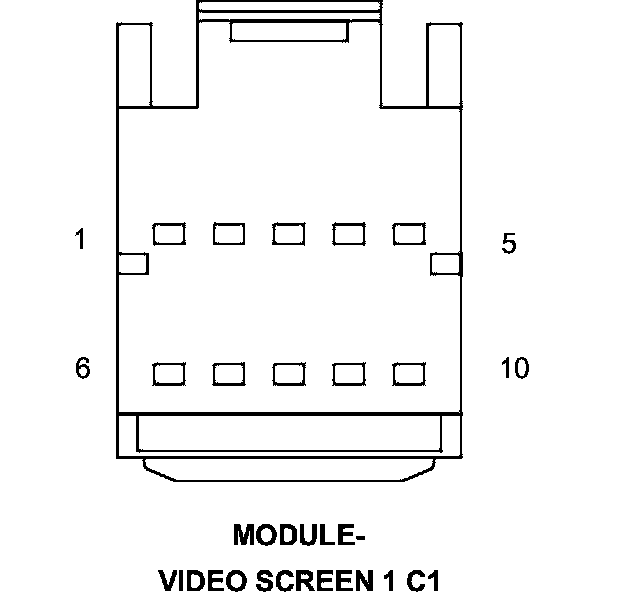

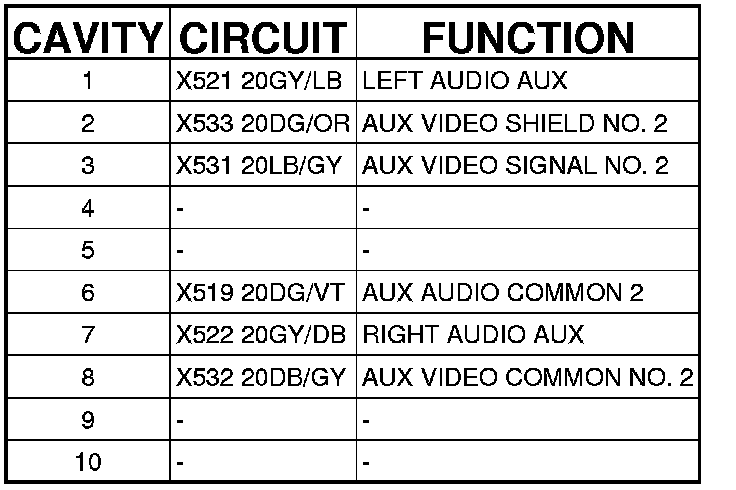

Connector C1 - (OVERHEAD) 10 WAY
MODULE-VIDEO SCREEN 1 - (OVERHEAD) 10 WAY
