Transmission Control System Relay, A/T

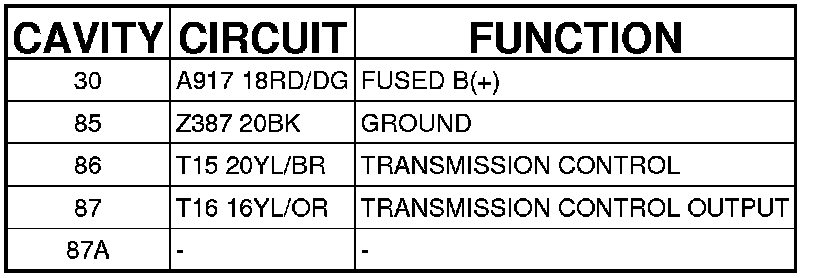

Connector (RFE) - (IN PDC)

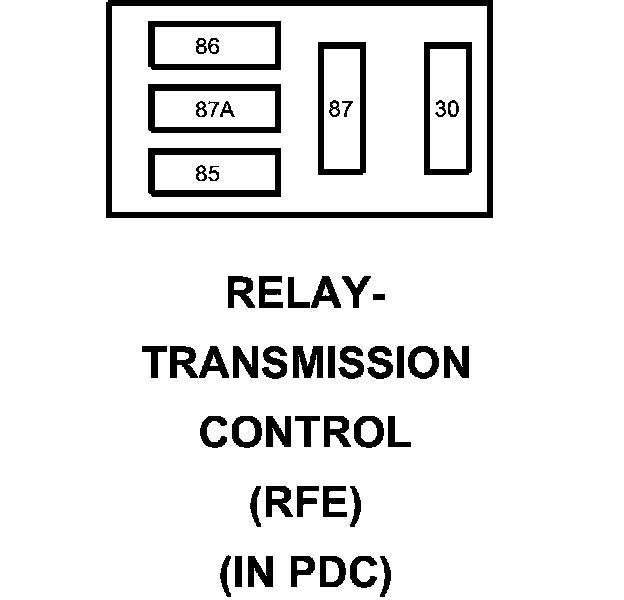

RELAY-TRANSMISSION CONTROL (RFE) - (IN PDC)
