Trailer Tow Module - Installation

INSTALLATION

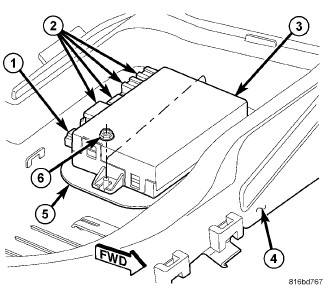

1. Position the Trailer Module (TM) (3) over the two studs integral to the mounting plate (5) on the floor of the right cavity of the intermediate step assembly (4).
2. Install and tighten the two nuts (6) that secure the module to the mounting plate studs. Tighten the nuts to 1 Nm (15 in. lbs.).
3. Reconnect the four body wire harness connectors to the module connector receptacles (2).
4. Reinstall the carpeted cover panel over the cavity on the right outboard end of the intermediate step assembly.
5. Restore the right outboard second row seat assembly to its normal seating position.
6. Reconnect the battery negative cable.
