Fuse: Locations

SPECIFICATION - Fuse Locations and Types

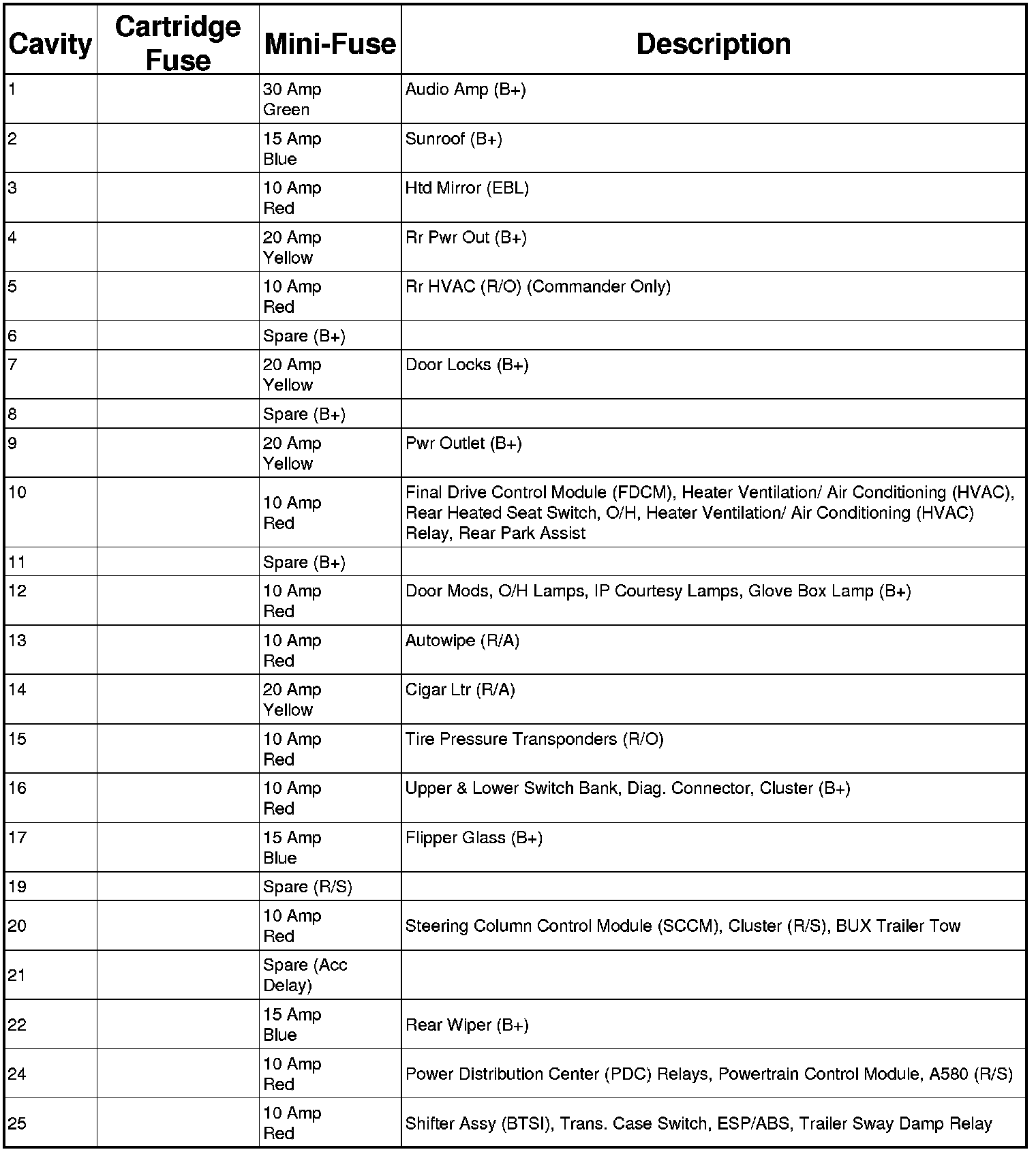

Interior Fuses

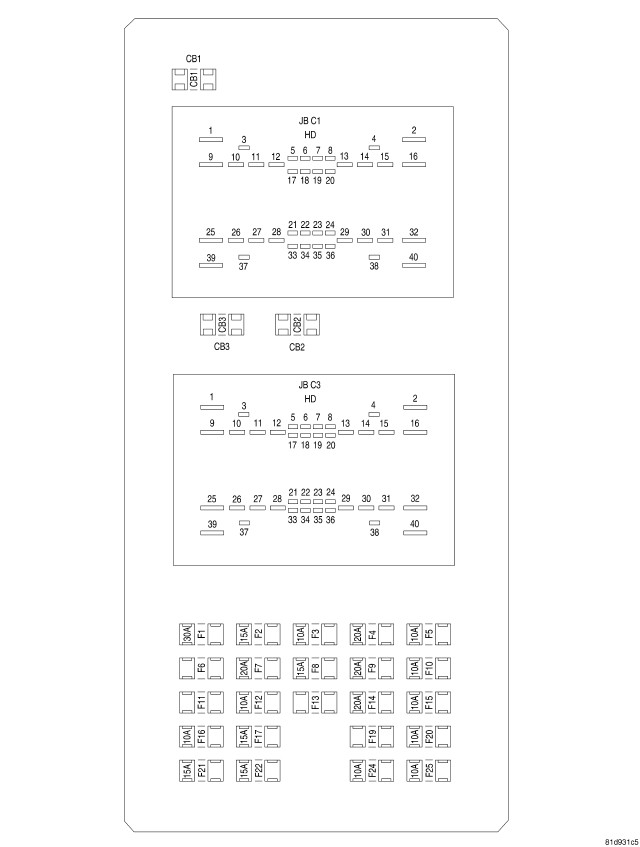

The fuse panel is on the lower instrument panel just to the left of the steering column.

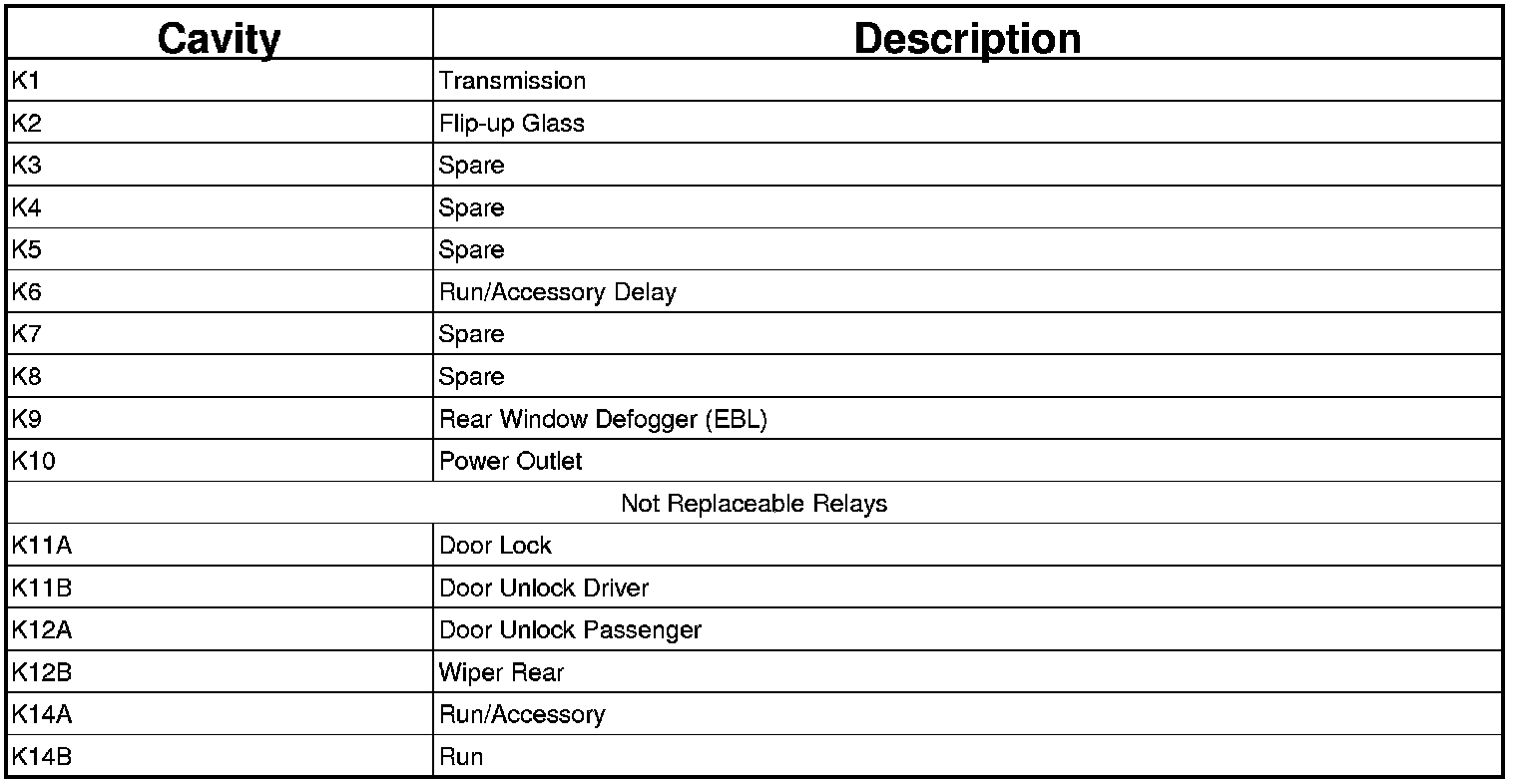

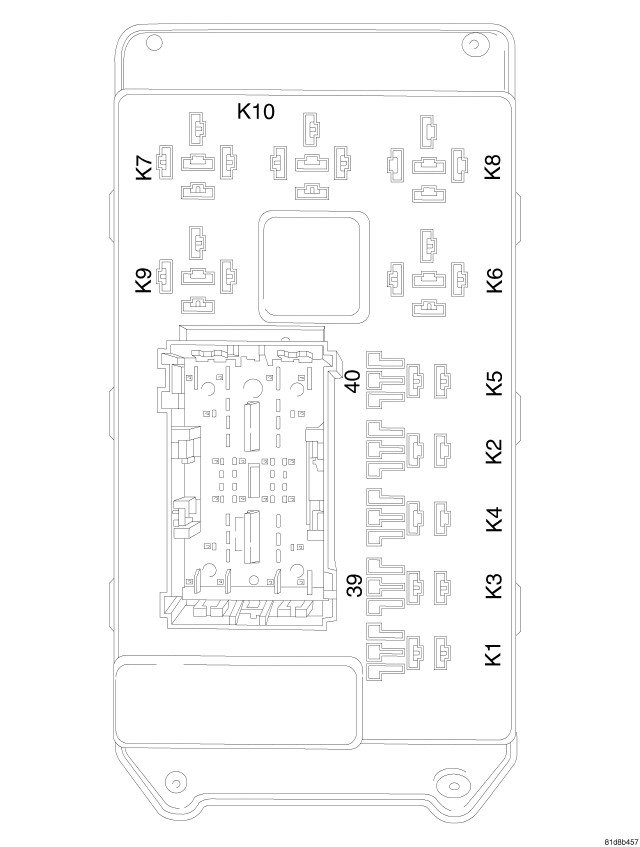

Interior Relays (Junction Block Rear)

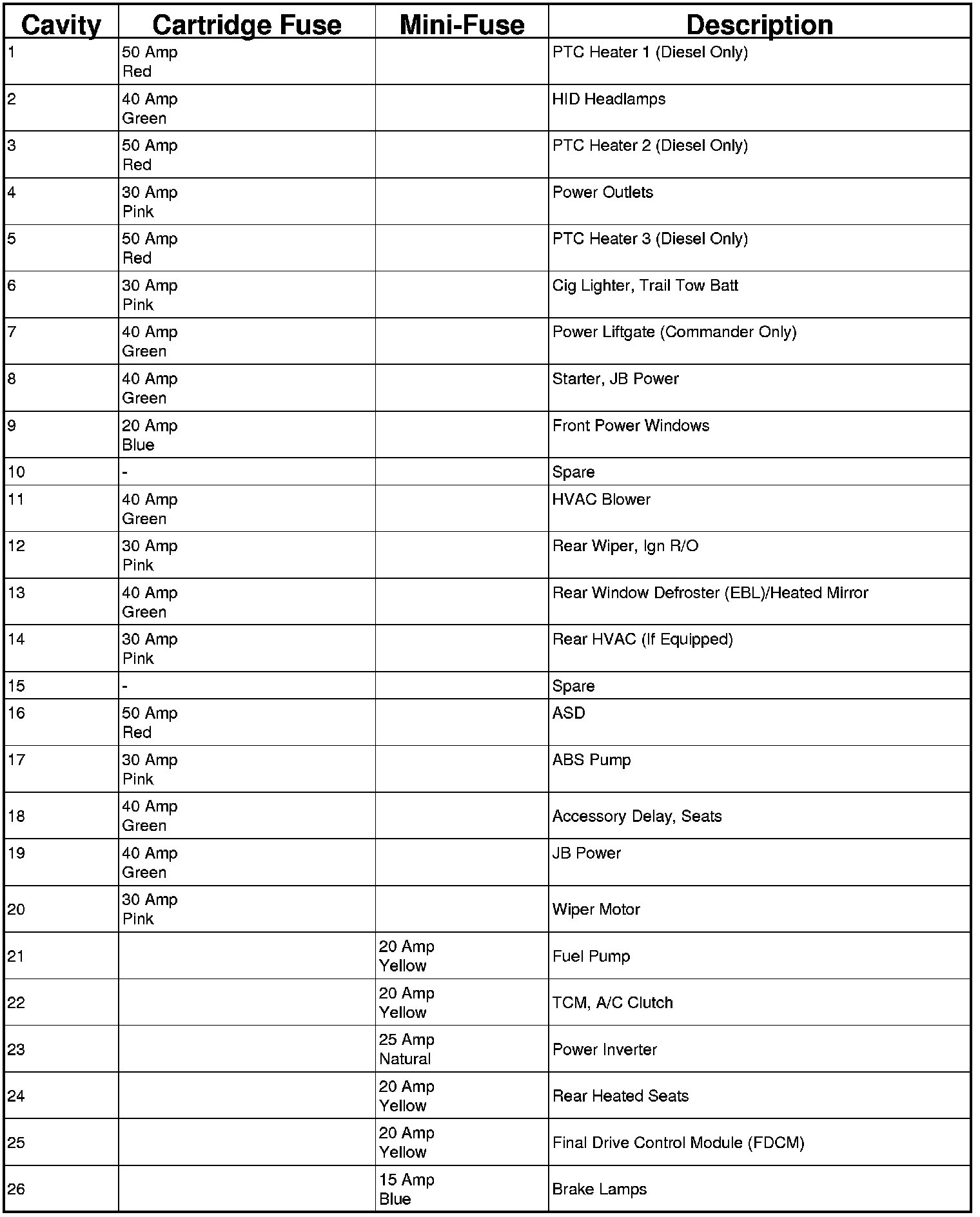

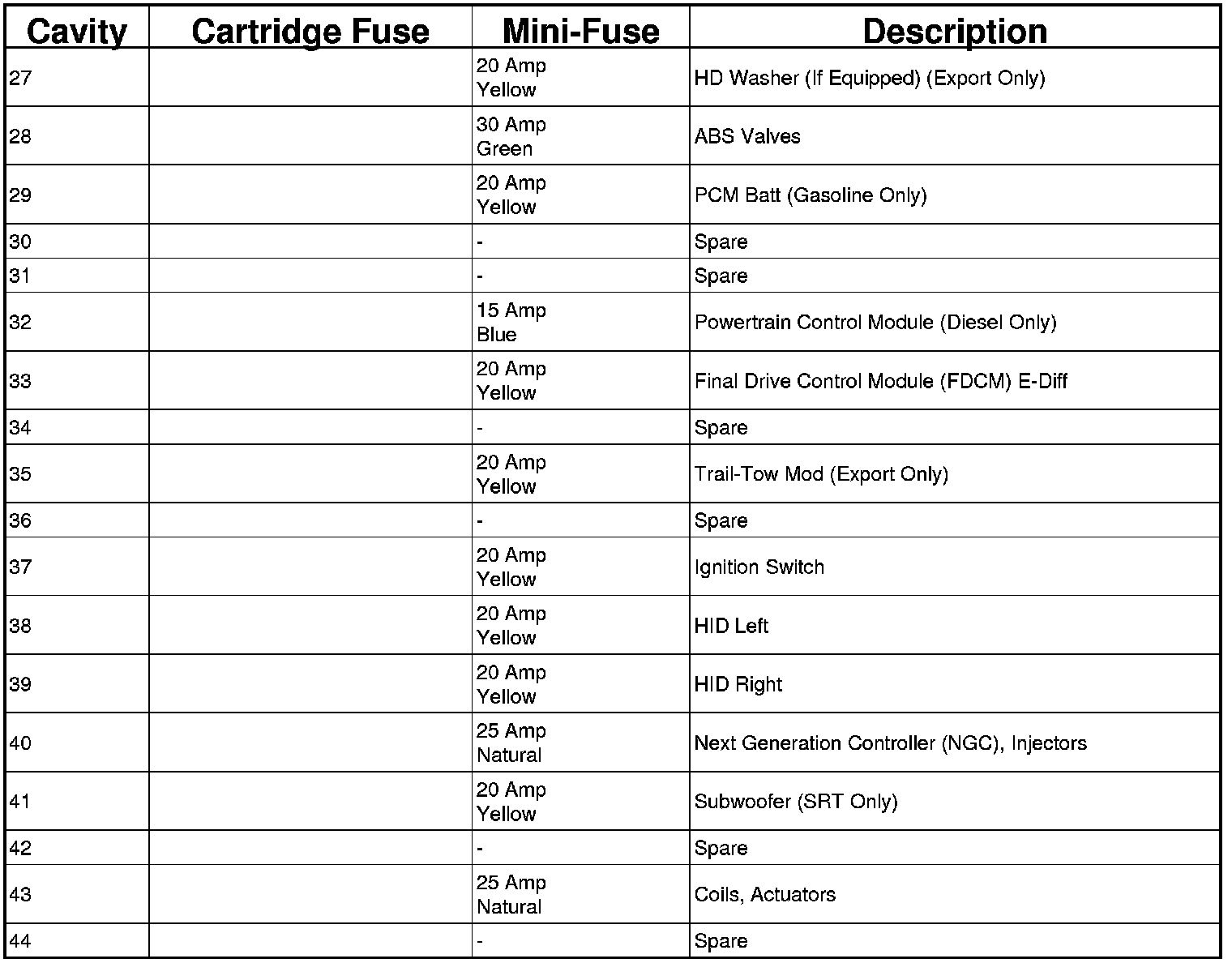

Underhood Fuses (Power Distribution Center)

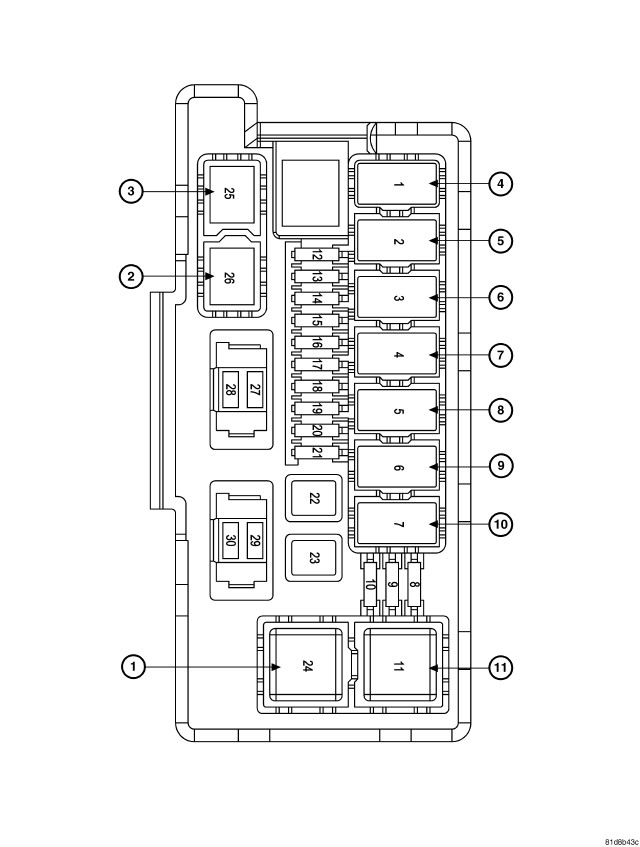

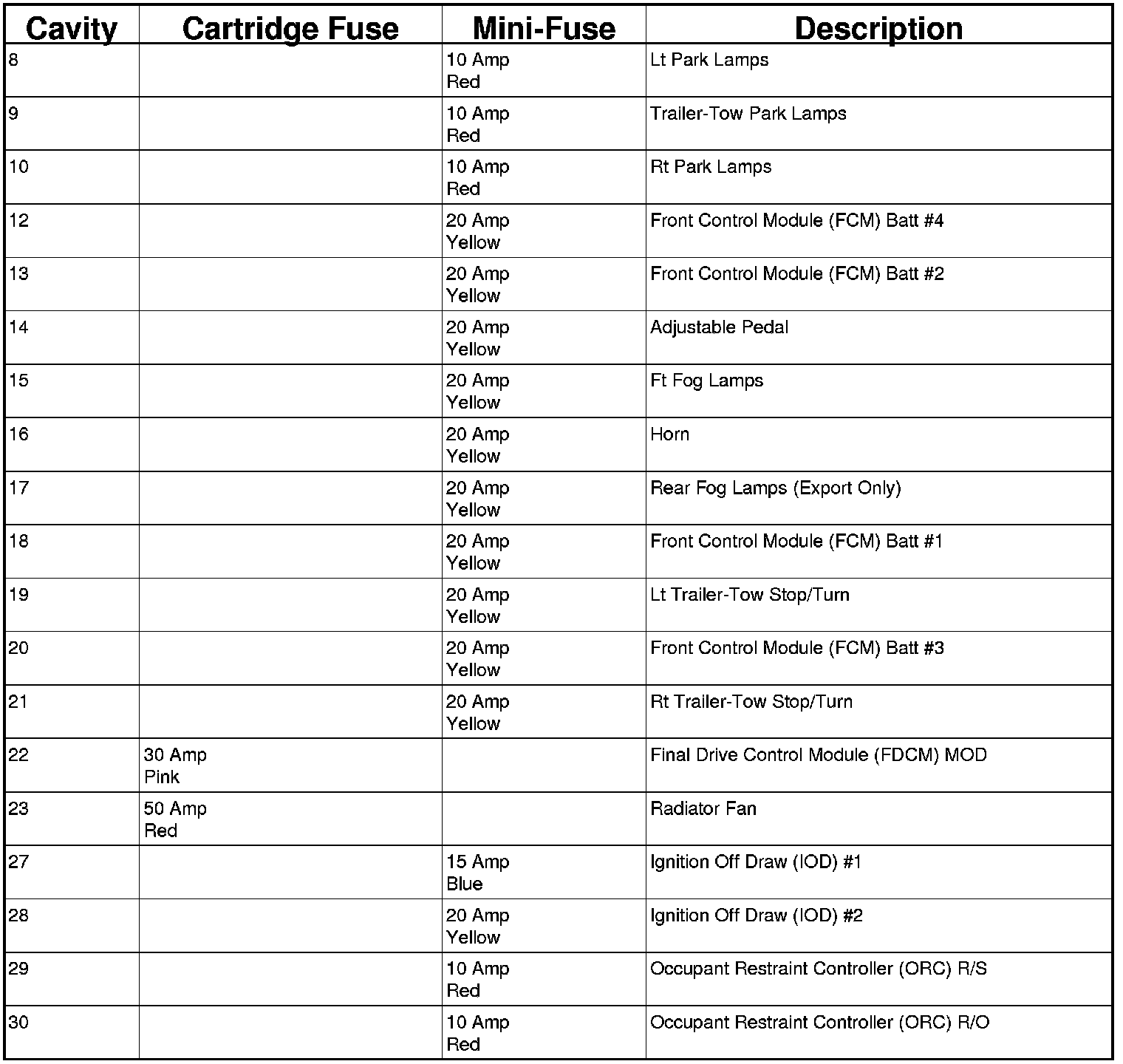

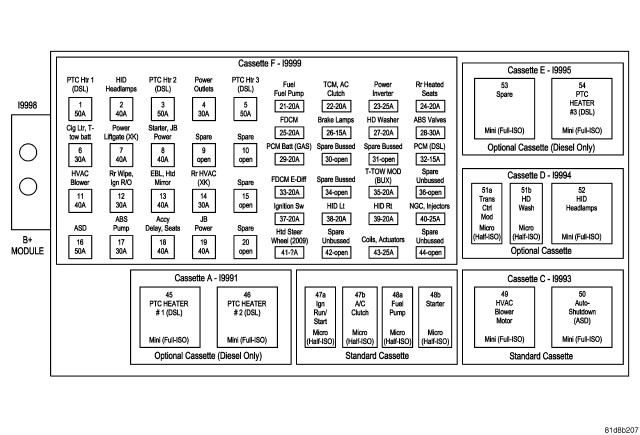

Underhood Fuses (Integrated Power Module)
