Camshaft Position Sensor - Installation

4.7L





1. Clean out machined hole in cylinder head.
2. Apply a small amount of engine oil to sensor O-ring.

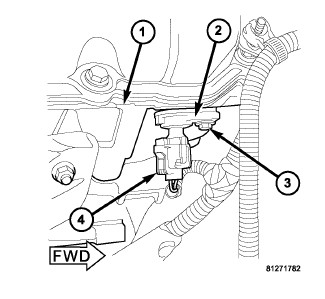

3. Install sensor (2) into cylinder head (1) with a slight rocking action. Do not twist sensor into position as damage to O-ring may result.

CAUTION: Before tightening sensor mounting bolt, be sure sensor is completely flush to cylinder head. If sensor is not flush, damage to sensor mounting tang may result.

4. Install mounting bolt (3) and tighten to 12 Nm (106 in.lbs.).
5. Connect electrical connector to sensor.
