Memory Seat Module - Removal

REMOVAL

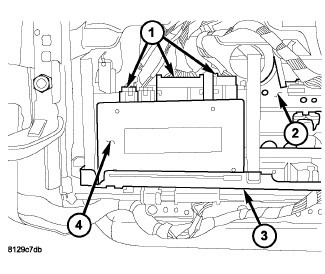

1. Disconnect and isolate the battery negative cable.
2. Remove the driver seat cushion/cover (2) Seat Cushion Cover - Removal.
3. Pivot the module upward and disconnect the electrical connectors (1).
4. Unsnap the memory seat module (4) from the side brackets.
5. Pull the module rearward to remove it from the front of the seat frame (3).
