Power Liftgate Module C2 (Body) 22 Way

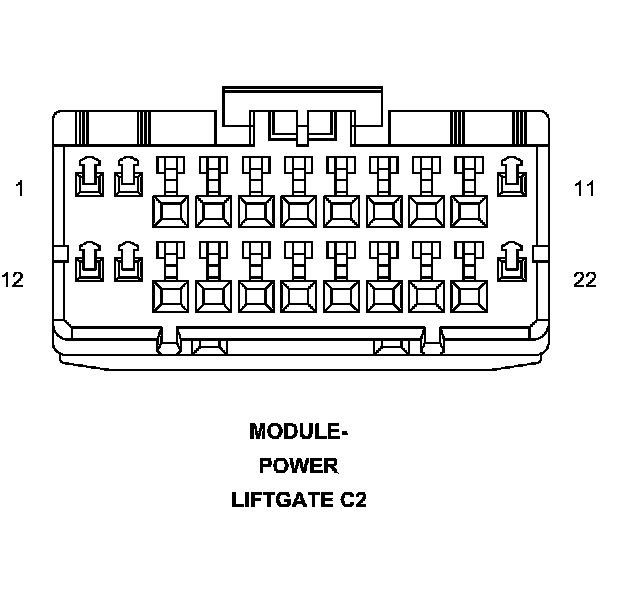

Connector C2 - (BODY) 22 WAY

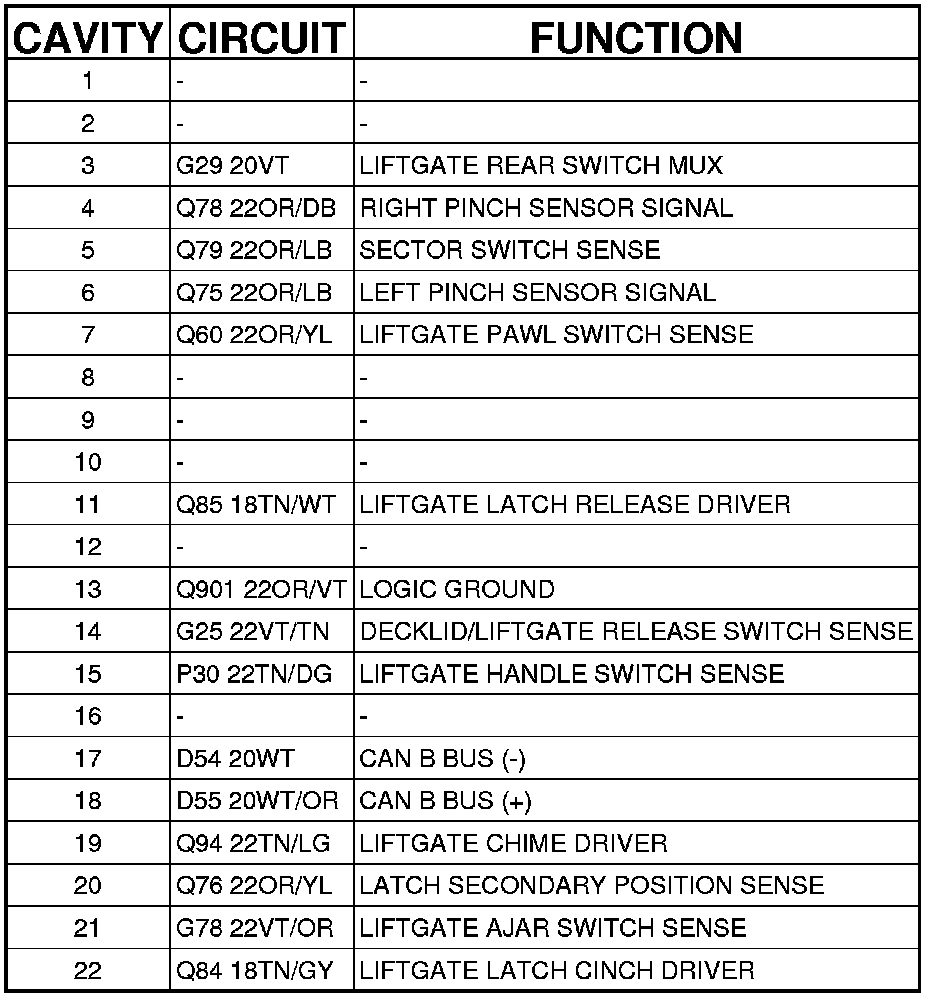

MODULE-POWER LIFTGATE - (BODY) 22 WAY
