Installation

5.7L





1. Clean MAP sensor mounting hole at intake manifold.

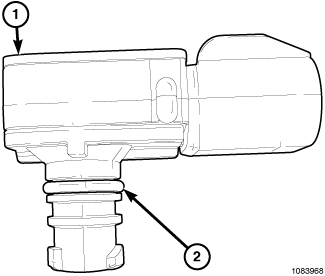

2. Check MAP sensor O-ring (2) for cuts or tears.

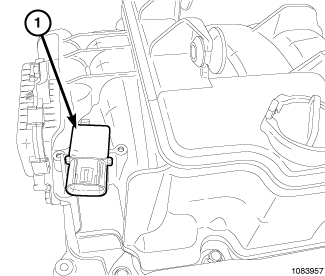

3. Position MAP sensor (1) into manifold.

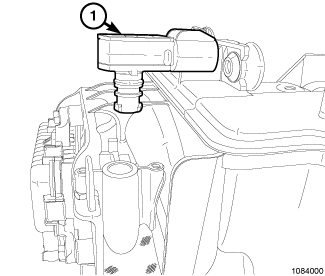

4. Rotate MAP sensor (1) clockwise for installation.
5. Connect electrical connector.
