Ignition Coil - Installation

5.7L





1. Using compressed air, blow out any dirt or contaminants from around top of spark plug.

NOTE: Use dielectric grease on each of the spark plug boots before installing the coil.

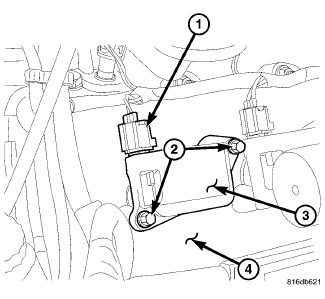

2. Position ignition coil (1) into valve cover and push onto spark plugs.





3. Install 2 coil mounting bolts (2). Tighten to 7 Nm (62 in.lbs.).
4. Connect electrical connector (1) to coil by snapping into position.
