Final Drive Control Module C1 (45RFE) (Underbody) 26 Way

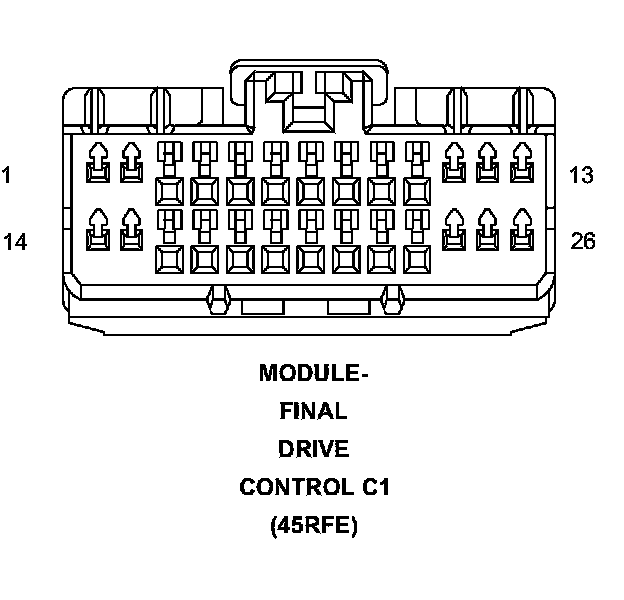

Connector C1 (45RFE) - (UNDERBODY) 26 WAY

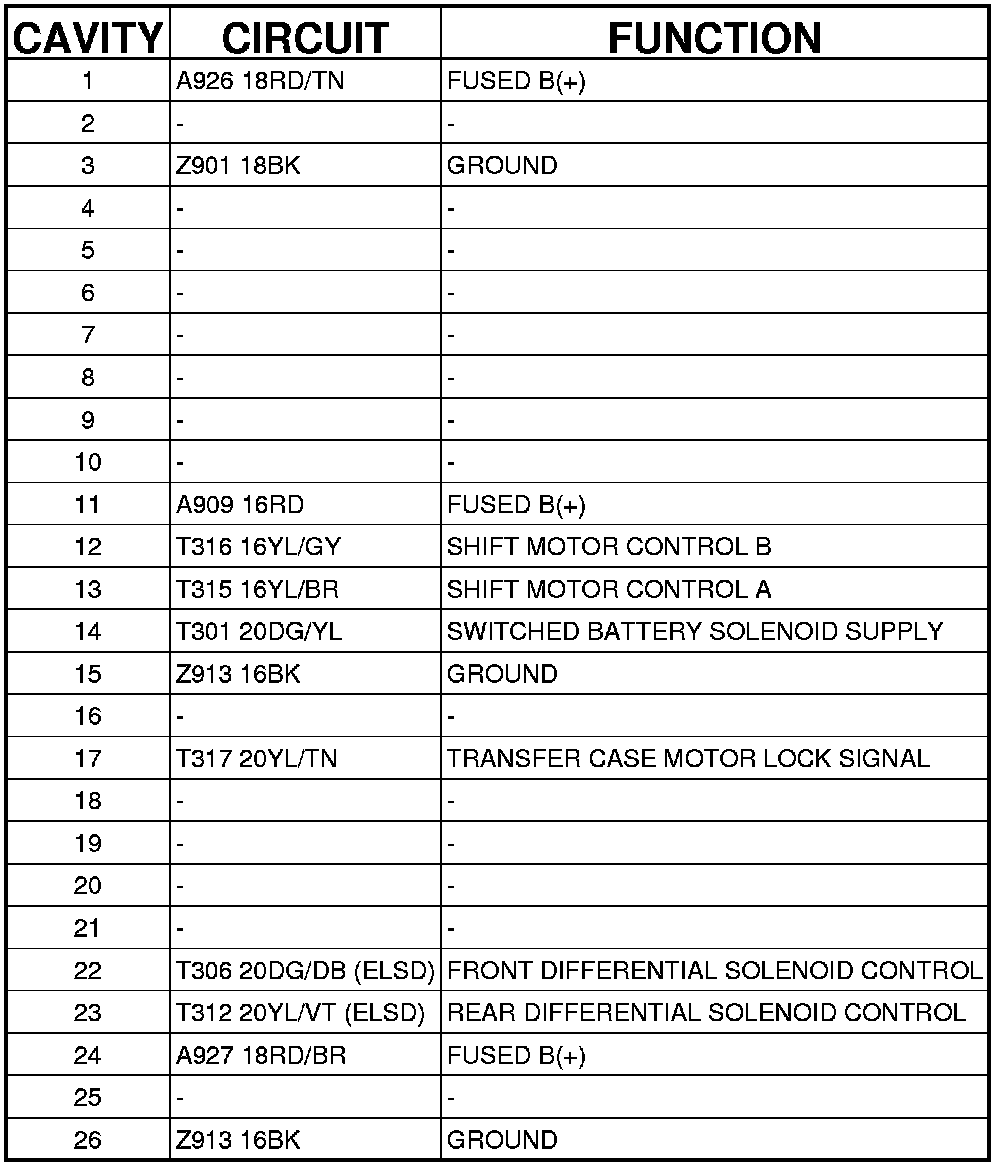

MODULE-FINAL DRIVE CONTROL (45RFE) - (UNDERBODY) 26 WAY
