Final Drive Control Module C2 (45RFE) (Underbody) 16 Way

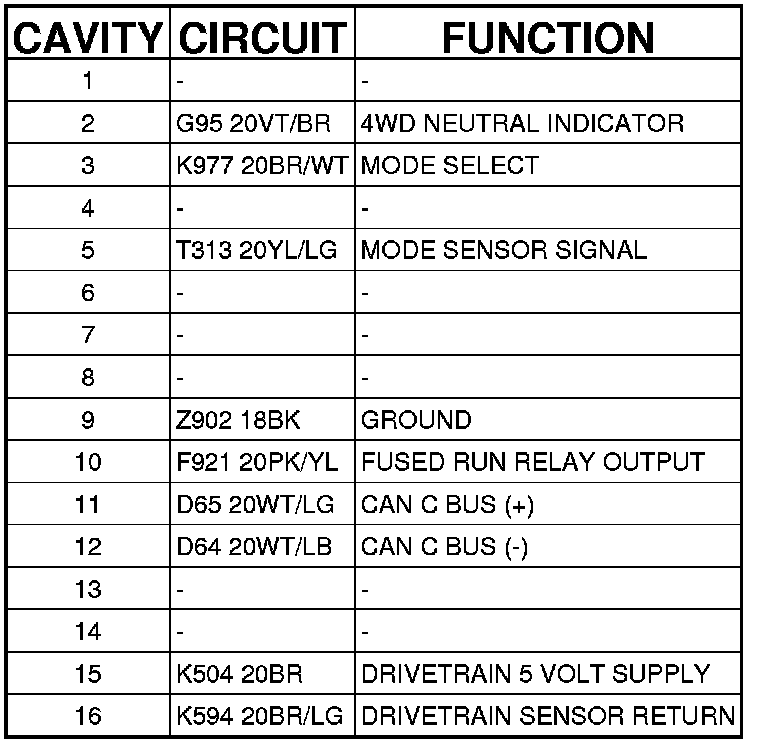

Connector C2 (45RFE) - (UNDERBODY) 16 WAY

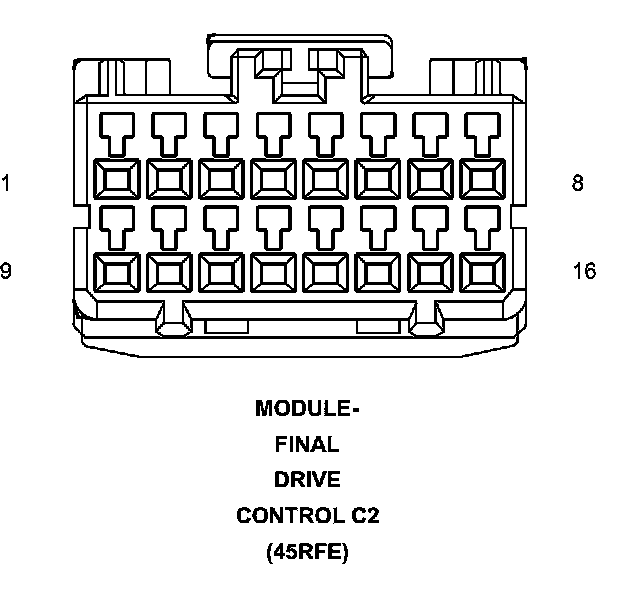

MODULE-FINAL DRIVE CONTROL (45RFE) - (UNDERBODY) 16 WAY
