Trunk / Liftgate Motor

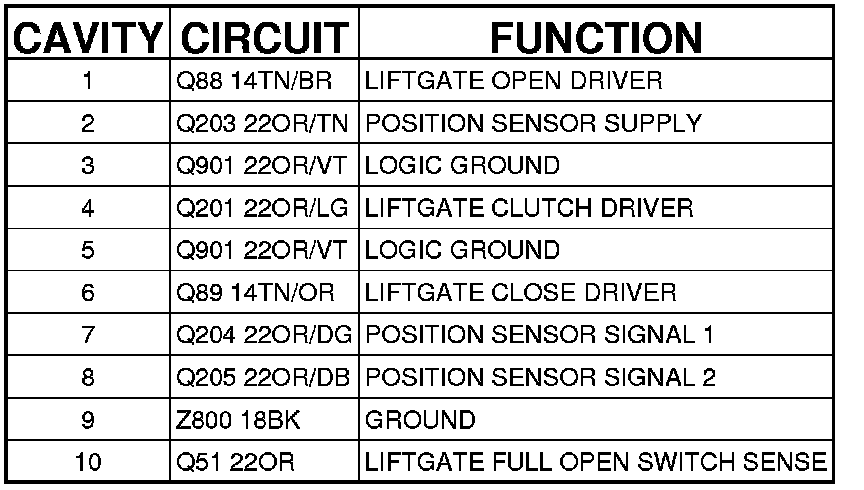

Connector (POWER LIFTGATE) - (BODY) 10 WAY

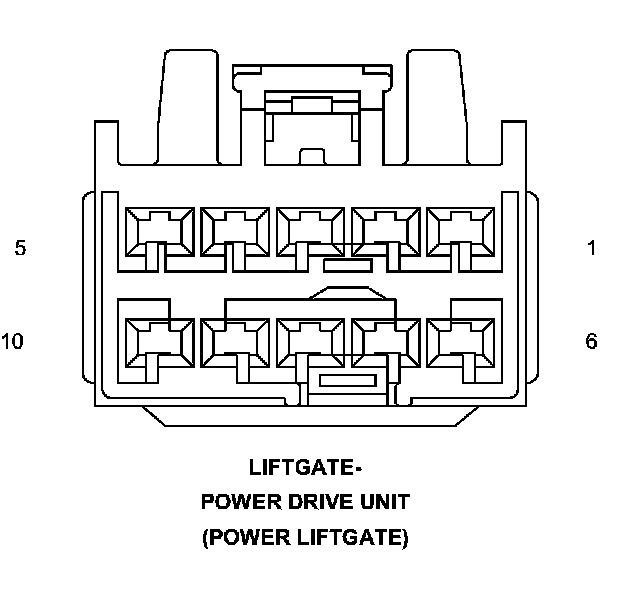

LIFTGATE-POWER DRIVE UNIT (POWER LIFTGATE) - (BODY) 10 WAY
