VALVE, Short Runner: Installation: Installation

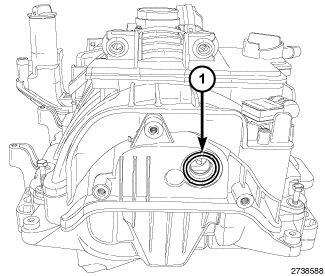

Fig 1: Short Runner Valve Actuator Rubber O-Ring Seal

Courtesy of CHRYSLER LLC

1. Install a new short runner valve actuator rubber O-ring seal (1).

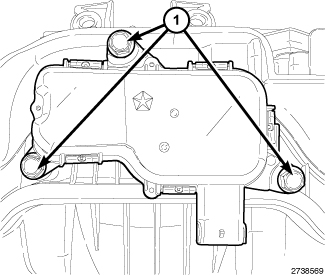

   Fig 2: Short Runner Valve Actuator Retaining Bolts

   Courtesy of CHRYSLER LLC
2. Position the short runner valve actuator, install the retaining bolts (1) and tighten to 5 N.m (44 in. lb.).

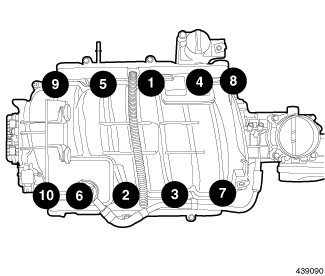

   Fig 3: Intake Manifold Retaining Bolt Removal & Tightening Sequence

   Courtesy of CHRYSLER LLC
3. Install the intake manifold and throttle body as an assembly. Refer to Engine/Manifolds/MANIFOLD, Intake - Installation .

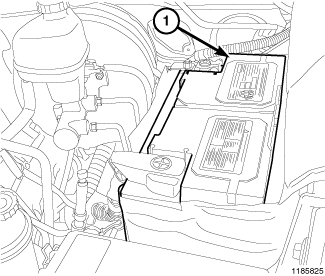

   Fig 4: Battery

   Courtesy of CHRYSLER LLC
4. Connect the negative battery cable (1).
