TANK, Fuel: Installation: Installation

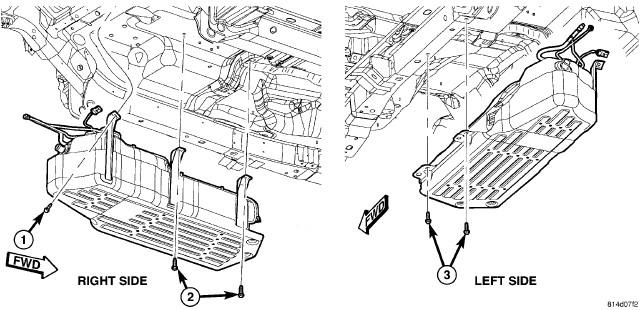

Fig 1: Fuel Tank Mounting

Courtesy of CHRYSLER LLC

If fuel tank is to be replaced, install fuel pump module into tank. See Installation .
Position fuel tank to hydraulic jack.
Raise tank until positioned to body.
Install and tighten bolts (1, 2 and 3) . Refer to TORQUE - DIESEL .
Remove hydraulic jack.

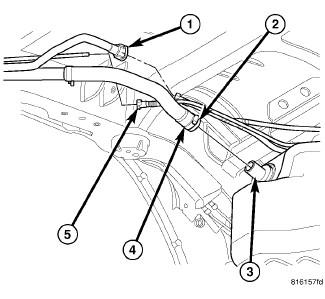

Fig 2: Fuel Lines - Rear
Courtesy of CHRYSLER LLC
Position rubber fill hose (2) to tank fitting (3). Tighten clamp (4).
Connect fuel vent connectors (1) and (5) at rear of tank. See Standard Procedure .

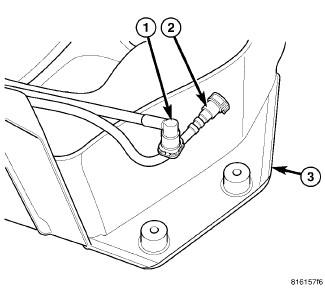

Fig 3: Fuel Lines - Front
Courtesy of CHRYSLER LLC
Connect fuel line connectors (1) and (2) at front of tank (3). See Standard Procedure .

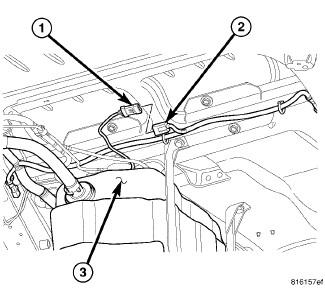

Fig 4: Fuel Pump Module Pigtail Harness
Courtesy of CHRYSLER LLC
Connect pump module electrical pigtail connector (1) to body wiring harness connector (2).
Lower vehicle.
Fill fuel tank with fuel.
Start engine and check for fuel leaks near top of pump module.
