SENSOR, Crankshaft Position: Installation: Installation

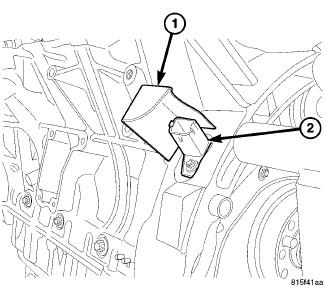

Fig 1: Crankshaft Position Sensor

Courtesy of CHRYSLER LLC

1 - HEAT SHIELD

2 - CRANKSHAFT POSITION SENSOR

1. Clean the crankshaft sensor bore and install the sensor (2) . Tighten the bolt to 9 N.m (80 in. lbs.).
2. Connect the engine harness connector.
3. Install the heat shield (1) .
4. Lower the vehicle.
5. Connect the negative battery cable.
