COIL, Ignition: Installation: 3.7L
Courtesy of CHRYSLER LLC
- Using compressed air, blow out any dirt or contaminants from around top of spark plug.
- Check the condition of the coil rubber boot (4). To aid in coil installation, apply silicone based grease such as Mopar® Dielectric Grease # J8126688 into the spark plug end of the rubber boot (4) and to the top of the spark plug (5).
Courtesy of CHRYSLER LLC

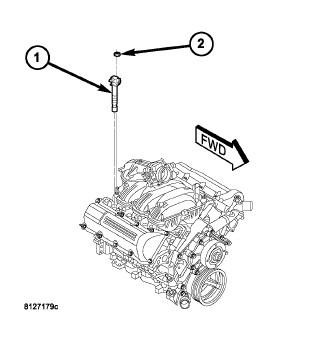

- Position ignition coil (1) into cylinder head opening and push onto spark plug. Do this while guiding coil base over mounting stud.
- Install coil mounting stud nut (2). Tighten to 8 N.m (70 in. lbs).
- Connect electrical connector to coil by snapping into position.
- If necessary, install throttle body air intake tube, or intake air box.
