Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Integrated Power Module

G00418140

Courtesy of CHRYSLER LLC

Fig 2: Left & Right Side Of Engine Compartment

G00418141

Courtesy of CHRYSLER LLC

Fig 3: Left Side Of Dash

G00418142

Courtesy of CHRYSLER LLC

Fig 4: Under Left Side Of Dash (3.7L & 4.7L)

G00418143

Courtesy of CHRYSLER LLC

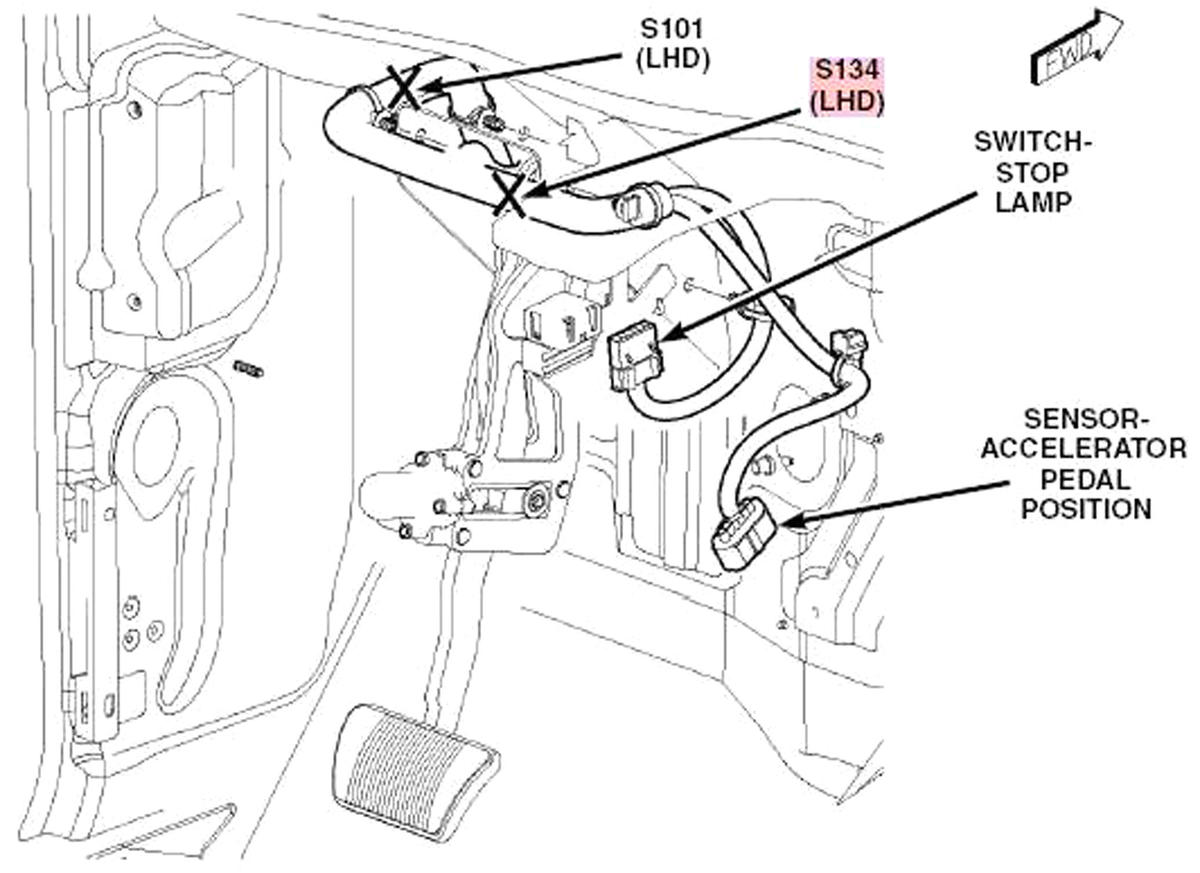

Fig 5: Under Left Side Of Dash (5.7L)

G00467436

Courtesy of CHRYSLER LLC

Fig 6: Left Rear Corner Of Engine Compartment

G00418145

Courtesy of CHRYSLER LLC

Fig 7: Left Side Of Engine Compartment

G00467435

Courtesy of CHRYSLER LLC

Fig 8: Front Of Engine Compartment

G00418147

Courtesy of CHRYSLER LLC

Fig 9: Left Front Of Engine Compartment

G00418148

Courtesy of CHRYSLER LLC

Fig 10: Right Front Of Engine Compartment

G00447449

Courtesy of CHRYSLER LLC

Fig 11: Right Front Wheel Well

G00418150

Courtesy of CHRYSLER LLC

Fig 12: IPM & PDC Battery Connections

G00418151

Courtesy of CHRYSLER LLC

Fig 13: Left Side Of Engine Compartment (3.7L & 4.7L)

G00418152

Courtesy of CHRYSLER LLC

Fig 14: Left Side Of Engine Compartment (5.7L)

G00418153

Courtesy of CHRYSLER LLC

Fig 15: Generator & Starter (5.7L)

G00418154

Courtesy of CHRYSLER LLC

Fig 16: Front Of Engine (3.7L & 4.7L)

G00418155

Courtesy of CHRYSLER LLC

Fig 17: Right Side Of Engine (3.7L & 4.7L)

G00418156

Courtesy of CHRYSLER LLC

Fig 18: Left Side Of Engine (3.7L & 4.7L)

G00447452

Courtesy of CHRYSLER LLC

Fig 19: Right Side Of Engine (3.7L & 4.7L)

G00418158

Courtesy of CHRYSLER LLC

Fig 20: Right Side Of Transmission (3.7L)

G00418159

Courtesy of CHRYSLER LLC

Fig 21: Left Side Of Transmission (4.7L)

G00418160

Courtesy of CHRYSLER LLC

Fig 22: Right Side Of Transmission (4.7L)

G00418161

Courtesy of CHRYSLER LLC

Fig 23: Right Side Of Engine (5.7L)

G00418162

Courtesy of CHRYSLER LLC

Fig 24: Left Side Of Engine (5.7L)

G00418163

Courtesy of CHRYSLER LLC

Fig 25: Right Side Of Engine Compartment (5.7L)

G00418164

Courtesy of CHRYSLER LLC

Fig 26: Left Side Of Transmission & Left Front Of Engine (5.7L)

G00418165

Courtesy of CHRYSLER LLC

Fig 27: Right Side Of Transmission (5.7L)

G00418166

Courtesy of CHRYSLER LLC

Fig 28: Front Cradle

G00447453

Courtesy of CHRYSLER LLC

Fig 29: Left Side Of HVAC

G00418168

Courtesy of CHRYSLER LLC

Fig 30: Right Side Of HVAC

G00418169

Courtesy of CHRYSLER LLC

Fig 31: Lower Left Side Of Dash

G00418170

Courtesy of CHRYSLER LLC

Fig 32: Left Dash Panel Junction Block

G00418171

Courtesy of CHRYSLER LLC

Fig 33: Left Kick Panel

G00418172

Courtesy of CHRYSLER LLC

Fig 34: Lower Left Side Of Dash

G00418173

Courtesy of CHRYSLER LLC

Fig 35: Behind Middle Left Side Of Dash

G00418174

Courtesy of CHRYSLER LLC

Fig 36: Right Kick Panel

G00418175

Courtesy of CHRYSLER LLC

Fig 37: Right "A" Pillar

G00418176

Courtesy of CHRYSLER LLC

Fig 38: Left Rear Of Headliner

G00418177

Courtesy of CHRYSLER LLC

Fig 39: Rear Of Headliner

G00418179

Courtesy of CHRYSLER LLC

Fig 40: Shifter Assembly

G00418180

Courtesy of CHRYSLER LLC

Fig 41: Under Center Console

G00418181

Courtesy of CHRYSLER LLC

Fig 42: Left Front Of Body

G00418182

Courtesy of CHRYSLER LLC

Fig 43: Right Front Of Body

G00418183

Courtesy of CHRYSLER LLC

Fig 44: Middle Of Body

G00418184

Courtesy of CHRYSLER LLC

Fig 45: Left Rear Of Body

G00418185

Courtesy of CHRYSLER LLC

Fig 46: Right Rear Of Body

G00418186

Courtesy of CHRYSLER LLC

Fig 47: Under Driver's & Passenger Seat

G00447459

Courtesy of CHRYSLER LLC

Fig 48: Rear HVAC Unit

G00418188

Courtesy of CHRYSLER LLC

Fig 49: Right Rear Of Body

G00418189

Courtesy of CHRYSLER LLC

Fig 50: Under Driver's Seat

G00418190

Courtesy of CHRYSLER LLC

Fig 51: Under Passenger's Seat

G00418191

Courtesy of CHRYSLER LLC

Fig 52: Side Of Passenger's Seat

G00418192

Courtesy of CHRYSLER LLC

Fig 53: Driver's Door

G00418353

Courtesy of CHRYSLER LLC

Fig 54: Passenger's Door

G00418354

Courtesy of CHRYSLER LLC

Fig 55: Rear Door

G00418355

Courtesy of CHRYSLER LLC

Fig 56: Center Underbody

G00418356

Courtesy of CHRYSLER LLC

Fig 57: Rear Underbody

G00418357

Courtesy of CHRYSLER LLC

Fig 58: Rear Chassis

G00418358

Courtesy of CHRYSLER LLC

Fig 59: Left & Right Rear Underbody

G00447460

Courtesy of CHRYSLER LLC

Fig 60: Center Underbody

G00418360

Courtesy of CHRYSLER LLC

Fig 61: Liftgate

G00418362

Courtesy of CHRYSLER LLC

Fig 62: Rear Bumper

G00457708

Courtesy of CHRYSLER LLC

Fig 63: Under Left Side Of Dash

G00447454

Courtesy of CHRYSLER LLC

Fig 64: Behind Center Of Dash

G00447455

Courtesy of CHRYSLER LLC

Fig 65: Behind Right Side Of Dash

G00447456

Courtesy of CHRYSLER LLC

Fig 66: Steering Wheel

G00447457

Courtesy of CHRYSLER LLC

Fig 67: Center Front Of Roof

G00447458

Courtesy of CHRYSLER LLC

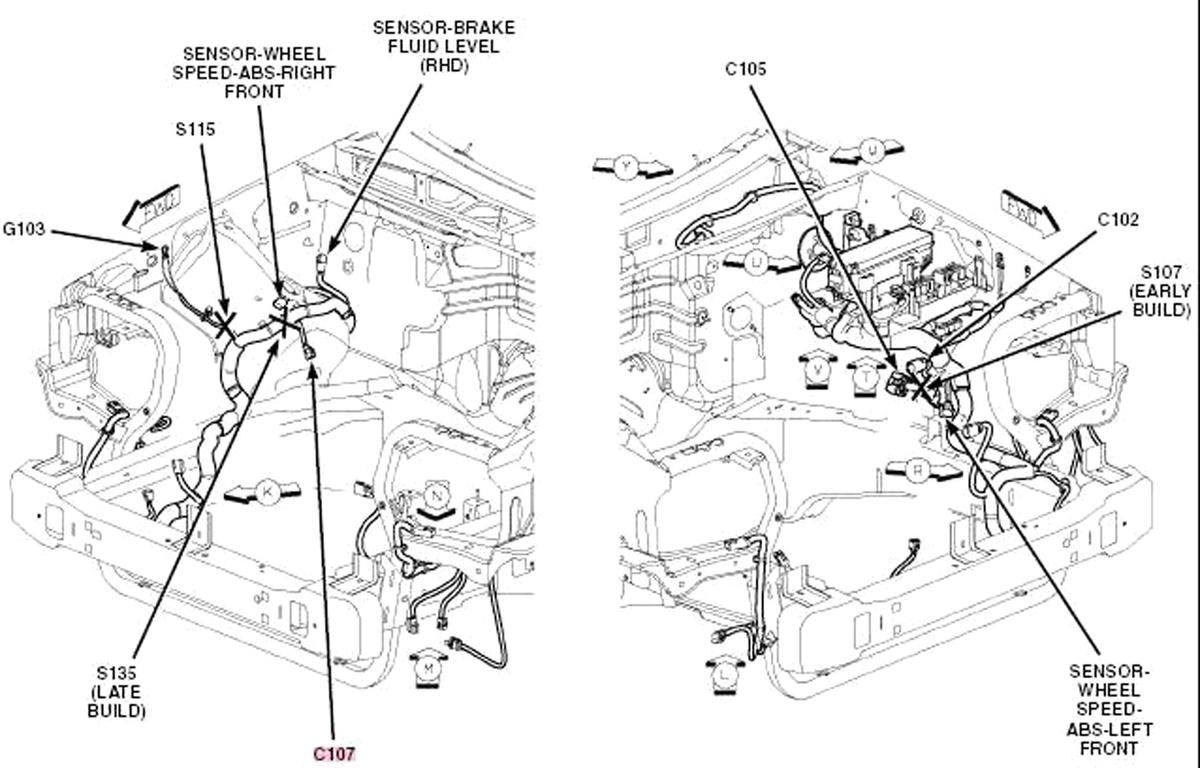

Fig 68: Left & Right Side Of Engine Compartment

G00467437

Courtesy of CHRYSLER LLC

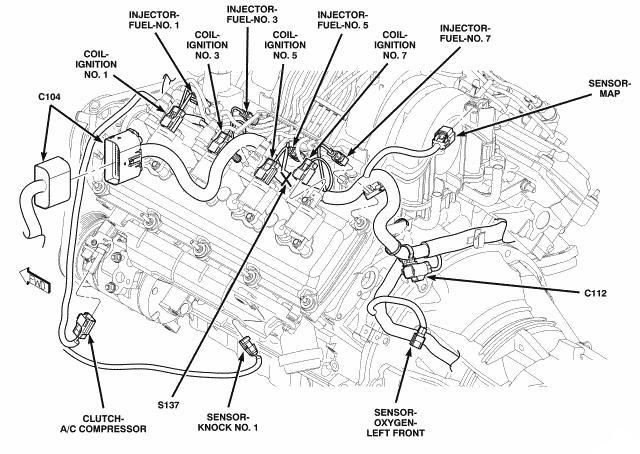

Fig 69: Front Of Engine (5.7L)

G00457707

Courtesy of CHRYSLER LLC

Fig 70: Left Side Of Engine Compartment

G00457709

Courtesy of CHRYSLER LLC

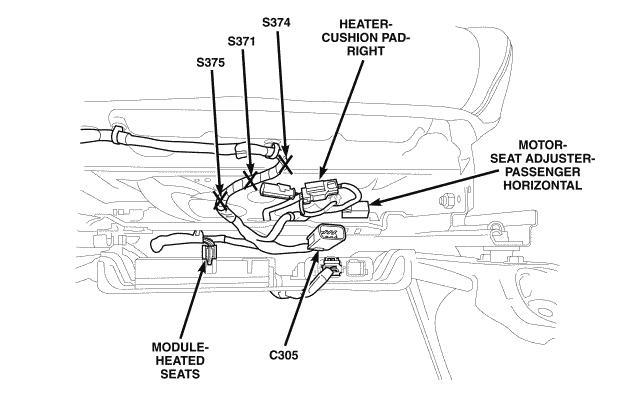

Fig 71: Seat Bottom

G00457710

Courtesy of CHRYSLER LLC

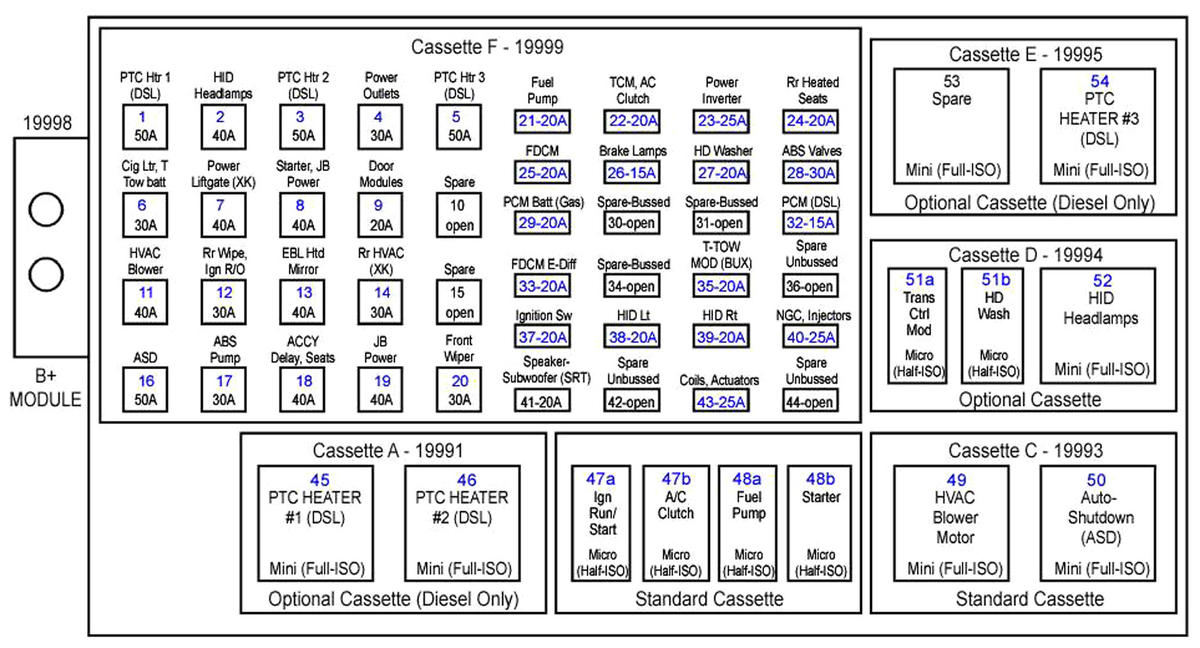

Fig 72: Power Distribution Center

G00467439

Courtesy of CHRYSLER LLC

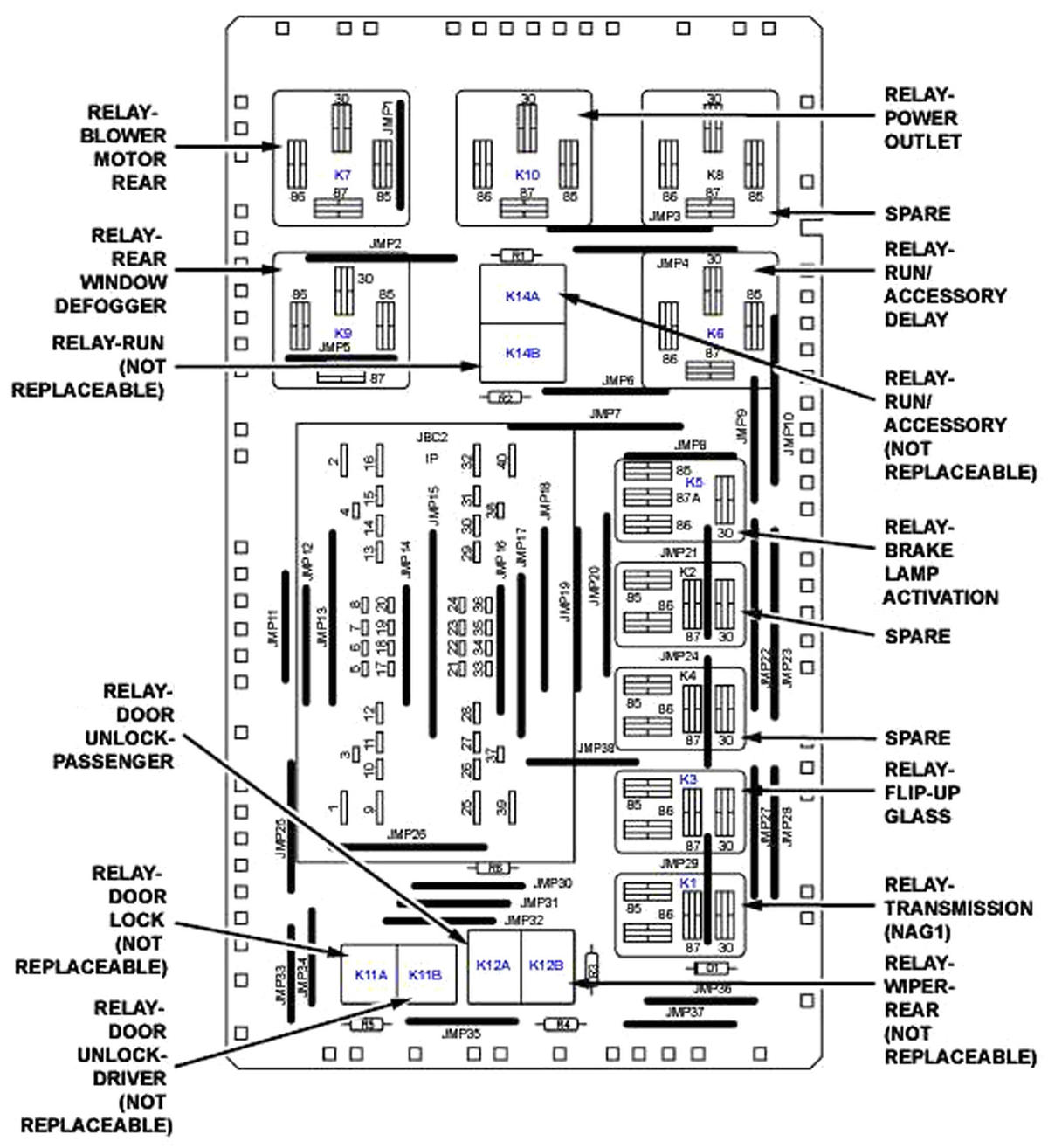

Fig 73: Junction Block

G00467440

Courtesy of CHRYSLER LLC
