Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

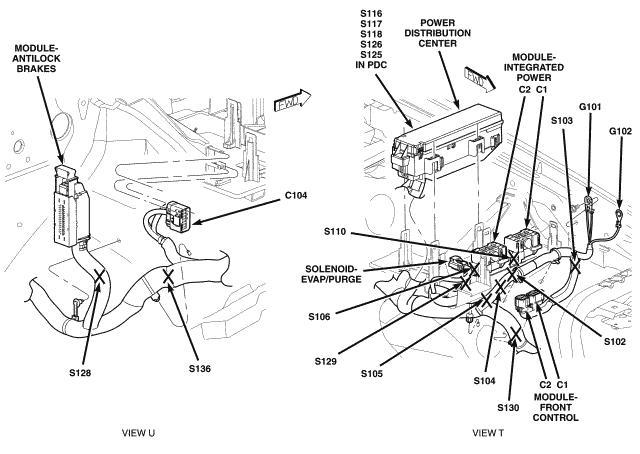

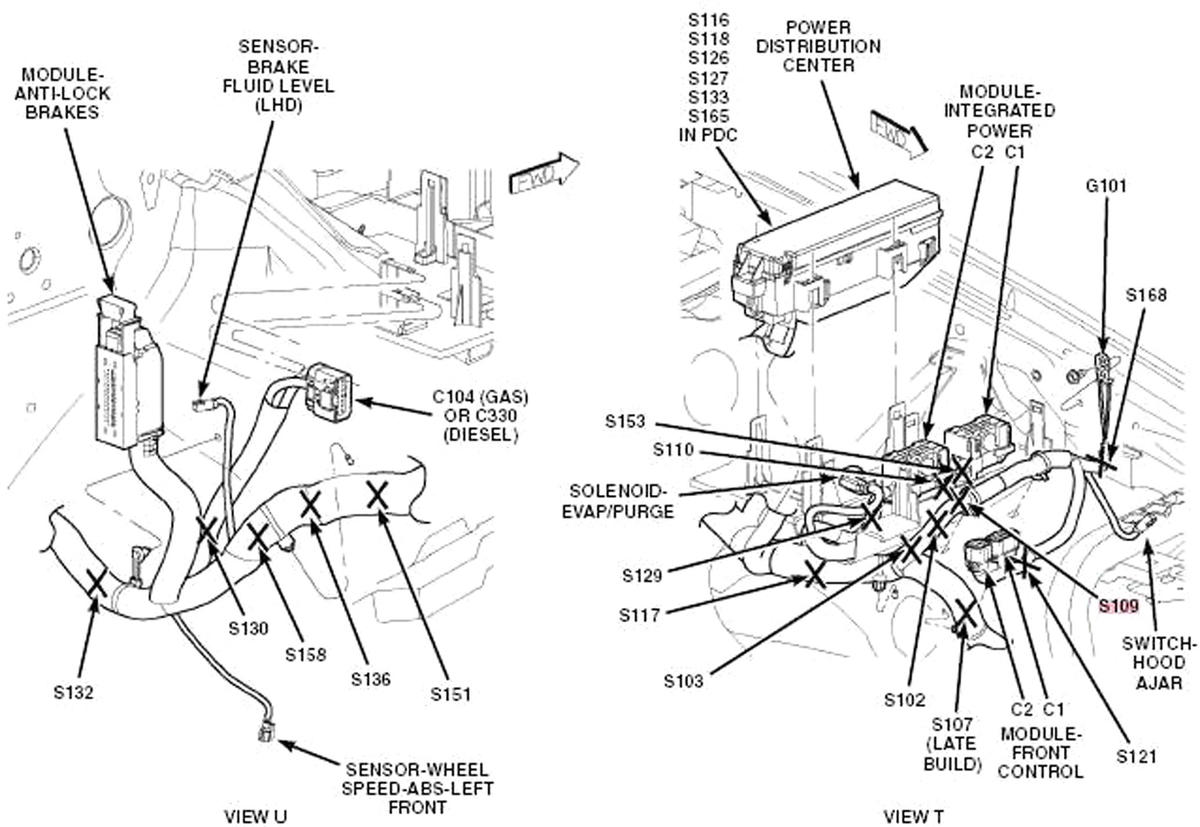

| Antilock Brakes Module | Left rear of engine compartment. See Figure. |
| Compass Module | Rear of headliner. See Figure. |
| Driver's Door Module | Driver's door. See Figure. |
| Electrohydraulic Control Unit Assembly | On transmission. See Figure. |
| Final Drive Control Module | Under left rear seat. See Figure. |
| Front Blower Power Module | On HVAC unit. See Figure. |
| Front Control Module | Left side of engine compartment. See Figure. |
| Hands Free Module | Right kick panel. See Figure. |
| Heated Seat Module | Under front passenger's seat. See Figure. |
| Integrated Power Module | Left side of engine compartment. See Figure. |
| Memory Seat Module | Under driver's seat. See Figure. |
| Occupant Restraint Controller Module | Under center console. See Figure. |
| Park Assist Module | Under left rear seat. See Figure. |
| Powertrain Control Module (3.7L & 4.7L) | Right rear of engine compartment. See Figure. |
| Powertrain Control Module (5.7L) | Right rear of engine compartment. See Figure. |
| Sentry Key Remote Entry Module | On steering column. See Figure. |
| Steering Control Module | In steering wheel. See Figure. |
| Transmission Control Module | Left side of dash. See Figure. |
