SENSOR, Air Temperature, Intake: Installation: Installation

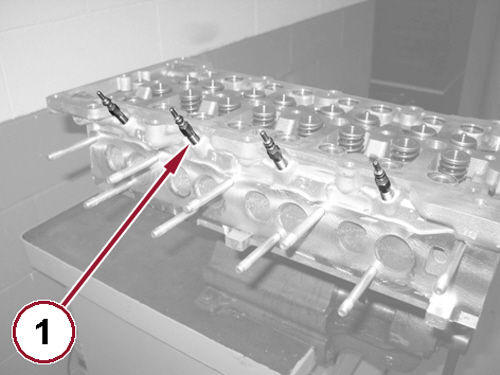

Fig 1: Removing/Installing Intake Air Temperature Sensor

Courtesy of CHRYSLER LLC

1 - INTAKE AIR TEMPERATURE SENSOR

2 - AIR CONTROL VALVE

3 - AIR CONTROL VALVE EXTENSION

4 - LOWER CHARGE AIR HOSE

1. Position the intake air temperature sensor along side of the air control valve extension (3) access hole.
2. Press together the sensor (1) locking tabs, seat the sensor (1) to the extension (3) and release tabs .
3. Connect negative battery cable.
