SENSOR, Boost Pressure: Installation: Installation

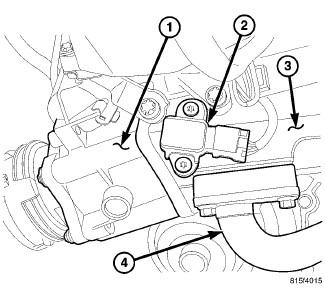

Fig 1: Removing/Installing Boost Pressure Sensor

Courtesy of CHRYSLER LLC

1 - AIR FLOW CONTROL VALVE

2 - BOOST PRESSURE SENSOR

3 - CHARGE AIR CROSS OVER TUBE

4 - EGR TUBE

1. Position the boost pressure sensor onto the charge air cross over tube and install the fasteners . Tighten the fasteners to 9 N.m (80 in. lbs.).
2. Connect the sensor wiring harness connector.
3. Connect the negative battery cable.
