SENSOR, Camshaft Position: Installation: Installation

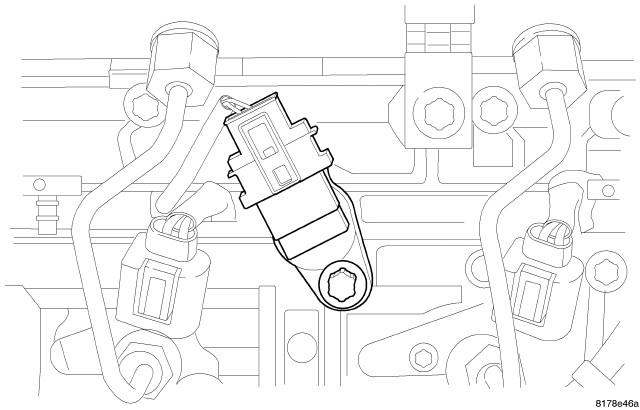

Fig 1: Locating Camshaft Position Sensor
GC0080494Courtesy of CHRYSLER LLC
  1. Install camshaft position sensor and tighten bolt to 8 N.m (71 in. lbs.).
  2. Reconnect electrical connector.
  3. Install engine cover.
  4. Reconnect negative battery cable.
