SENSOR, Air Temperature, Intake: Installation: 4.7L

Fig 1: IAT Sensor Tab/O-Ring

Courtesy of CHRYSLER LLC

1 - IAT SENSOR

2 - SENSOR O-RING

3 - RELEASE TAB

1. Check condition of sensor o-ring (2).
2. Clean sensor mounting hole.
3. Position sensor (1) into base and rotate clockwise until past release tab (3).

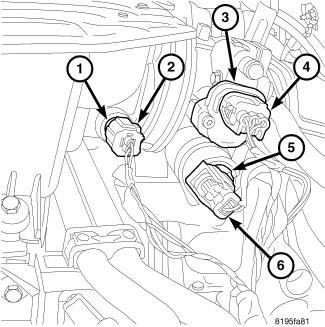

   Fig 2: IAT Sensor - 4.7L

   Courtesy of CHRYSLER LLC
4. Install electrical connector (2).
