Throttle Body: Installation: 3.7L

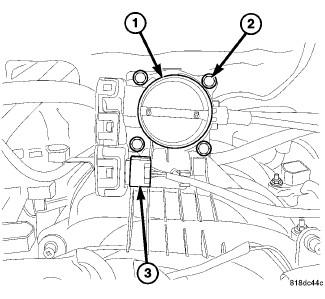

Fig 1: Throttle Body 3.7L

Courtesy of CHRYSLER LLC

Check condition of throttle body-to-intake manifold O-ring. Replace as necessary.
Clean mating surfaces of throttle body and intake manifold.
Install O-ring between throttle body and intake manifold.
Position throttle body (1) to intake manifold.
Install all throttle body mounting bolts (2) finger tight.

Fig 2: Throttle Body Bolts Torque Sequence
Courtesy of CHRYSLER LLC

CAUTION: The throttle body mounting bolts MUST be tightened to specifications. Over tightening can cause damage to the throttle body or the intake manifold.
Obtain a torque wrench. Tighten mounting bolts (as shown in illustration) in a mandatory torque crisscross pattern sequence to 7.5 N.m (65 in. lbs.).

Fig 3: Throttle Body 3.7L
Courtesy of CHRYSLER LLC
Install electrical connector (3).
Install necessary vacuum lines.
Install air cleaner duct at throttle body.
Connect negative battery cable.
Using the diagnostic scan tool, erase all previous DTC's and perform the ETC Relearn function.
