COIL, Ignition: Installation: 5.7L

Fig 1: Removing/Installing Ignition Coil

Courtesy of CHRYSLER LLC

Using compressed air, blow out any dirt or contaminants from around top of spark plug.
NOTE: Use dielectric grease on each of the spark plug boots before installing the coil.
Position ignition coil (1) into valve cover and push onto spark plugs.

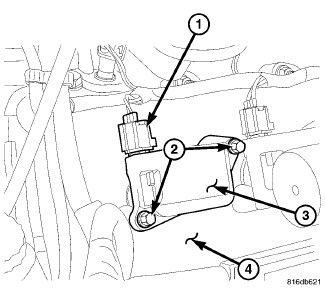

Fig 2: Ignition Coil Location - 5.7L
Courtesy of CHRYSLER LLC
Install 2 coil mounting bolts (2). Tighten to 7 N.m (62 in. lbs.).
Connect electrical connector (1) to coil by snapping into position.
