Floor Jack

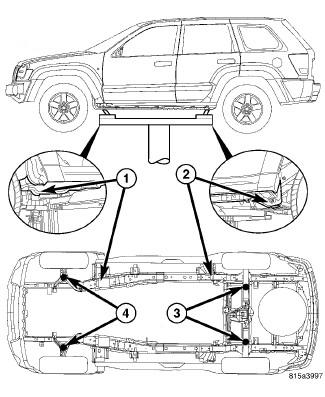

Fig 1: Lift Points

Courtesy of CHRYSLER LLC

1 - FRAME RAIL LIFT POINT (Floor Jack AND Hoist)

2 - FRONT SPRING MOUNT (Lift point in front of spring mount - floor jack and hoist)

3 - AXLE LIFT POINT (Floor Jack)

4 - CONTROL ARM LIFT POINT (Floor Jack)

When properly positioned, a floor jack can be used to lift the vehicle (3 and 4). Support the vehicle in the raised position with jack stands at the front and rear ends of the frame rails (1 and 2).

CAUTION: Do not attempt to lift a vehicle with a floor jack positioned under:

Aluminum differential.
A body side sill.
A steering linkage component.
A drive shaft.
The engine or transmission oil pan.
The fuel tank.
