Metric System

DESCRIPTION





The metric system is based on quantities of one, ten, one hundred, one thousand and one million.

The following chart will assist in converting metric units to equivalent English and SAE units, or vise versa.

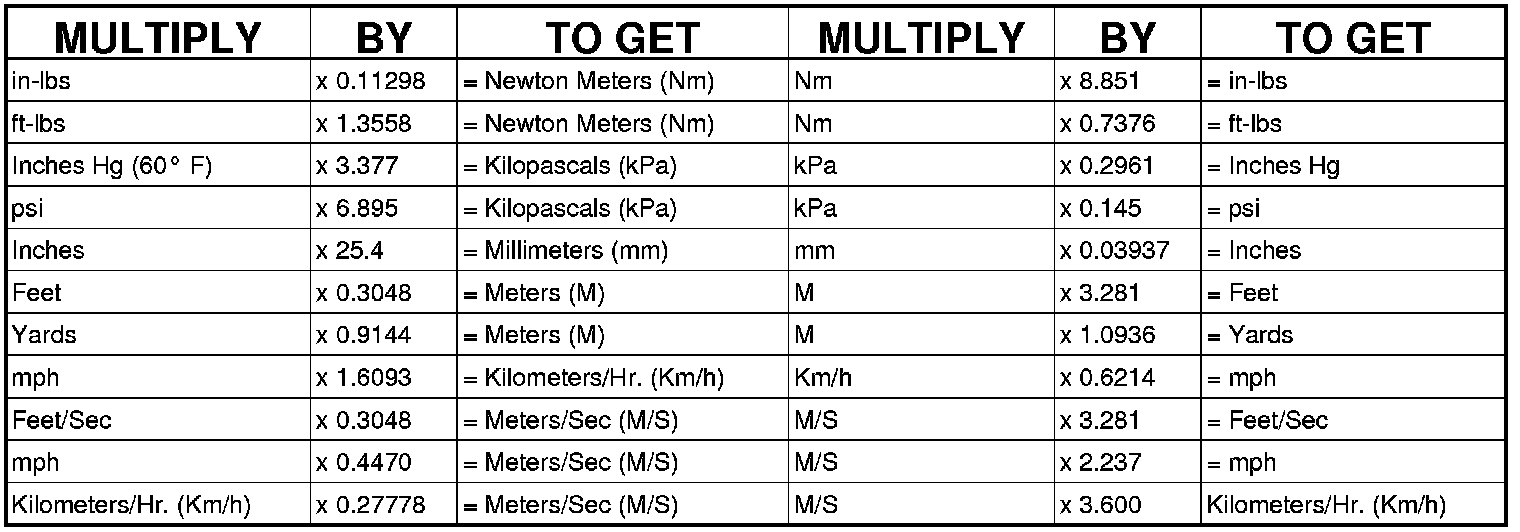

CONVERSION FORMULAS AND EQUIVALENT VALUES

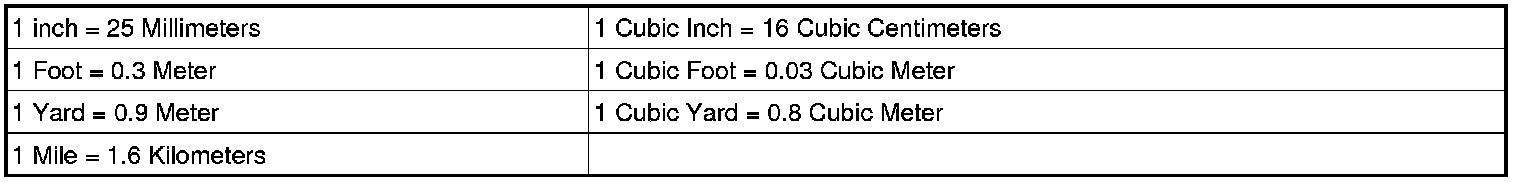

COMMON METRIC EQUIVALENTS

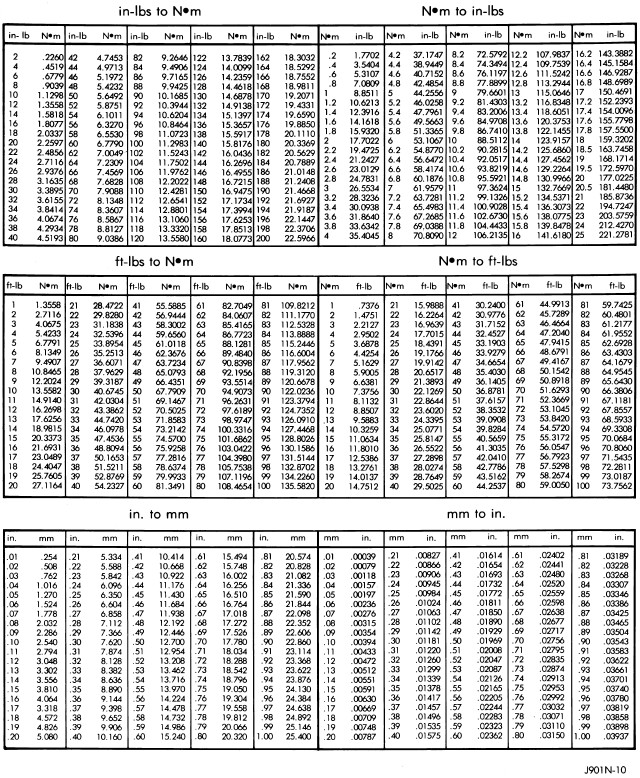

Refer to the Metric Conversion Chart to convert torque values listed in metric Newton Meters (Nm). Also, use the chart to convert between millimeters (mm) and inches (in.).
