Cruise Control Switch

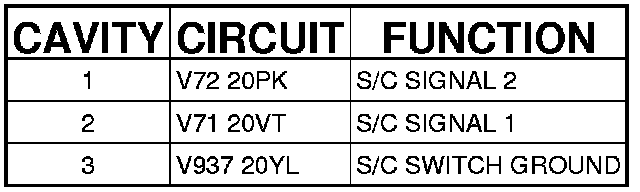

Connector - (STEERING WHEEL) 3 WAY

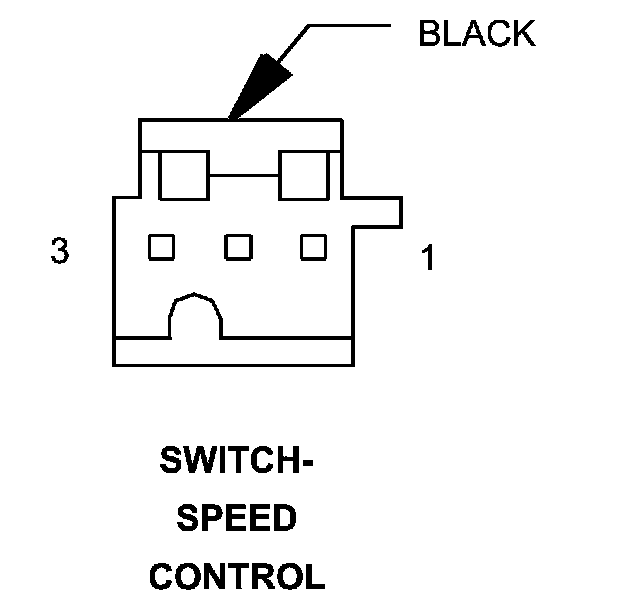

SWITCH-SPEED CONTROL - (STEERING WHEEL) 3 WAY
