Left Front Impact Sensor (Engine Compartment) 2 Way

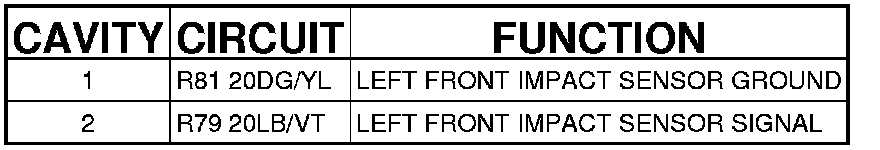

Connector - (ENGINE COMPARTMENT) 2 WAY

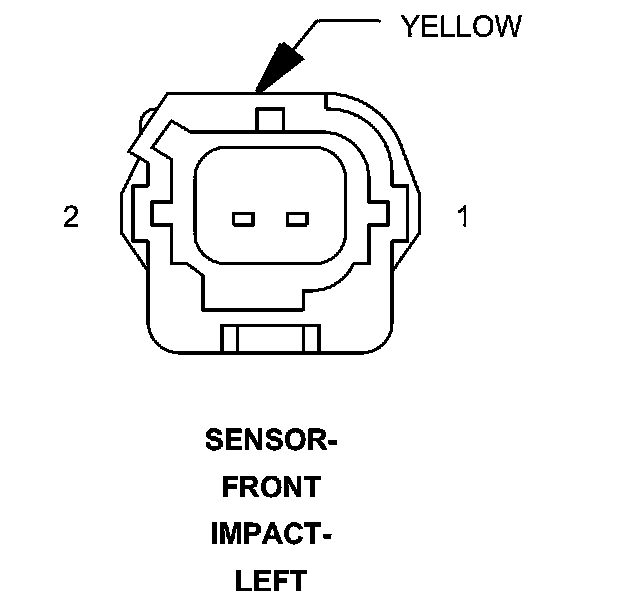

SENSOR-FRONT IMPACT-LEFT - (ENGINE COMPARTMENT) 2 WAY
