Power Mirror Switch

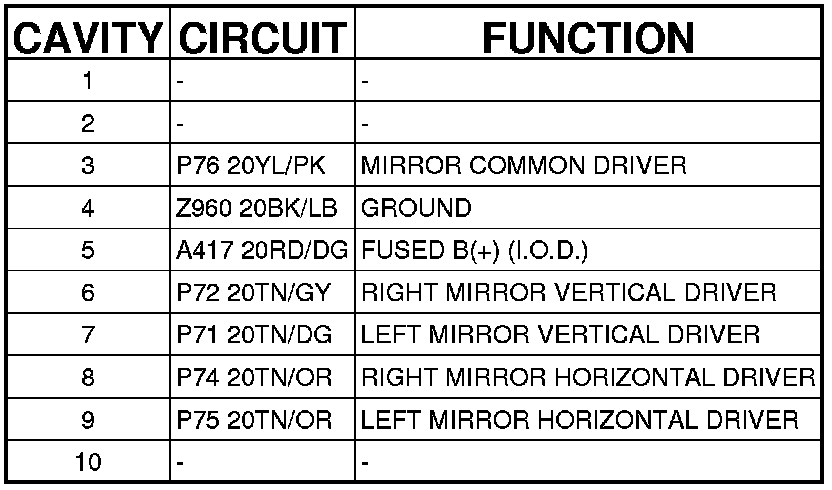

Connector (LHD) - (LEFT FRONT DOOR) 10 WAY

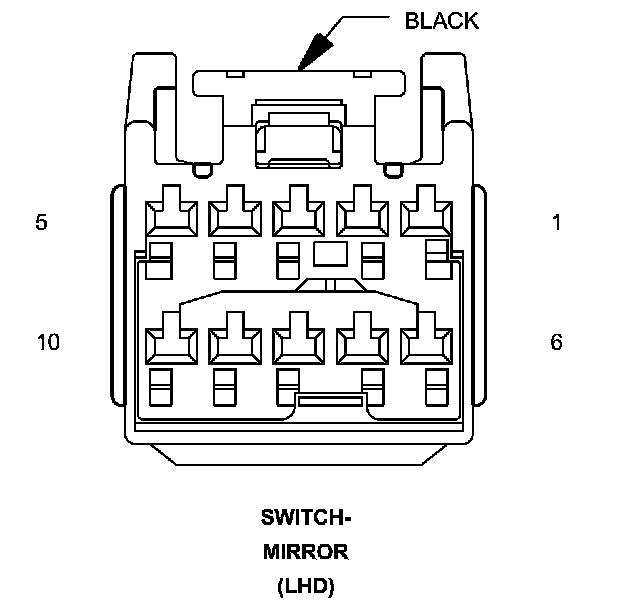

SWITCH-MIRROR (LHD) - (LEFT FRONT DOOR) 10 WAY
