Inverter Module (Instrument Panel) 9 Way

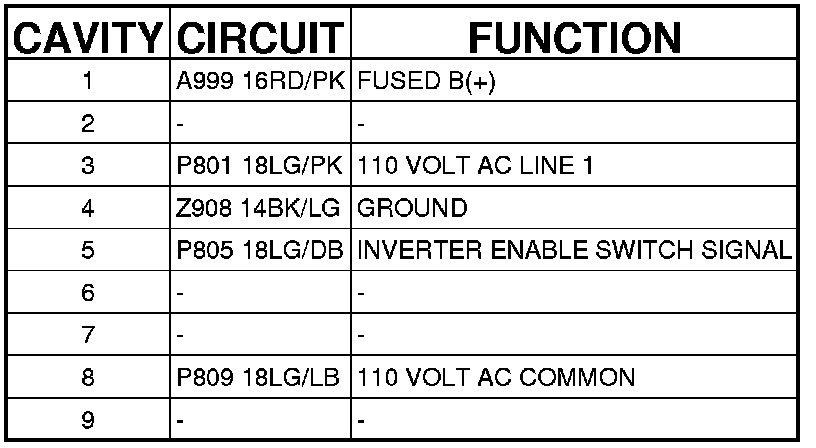

Connector (EXCEPT EXPORT) - (INSTRUMENT PANEL) 9 WAY

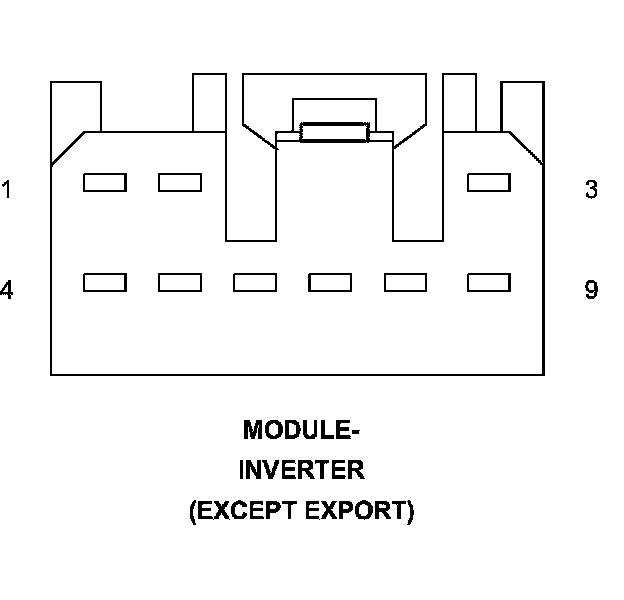

MODULE-INVERTER (EXCEPT EXPORT) - (INSTRUMENT PANEL) 9 WAY
