Totally Integrated Power Module C2 (Engine Compartment) 14 Way

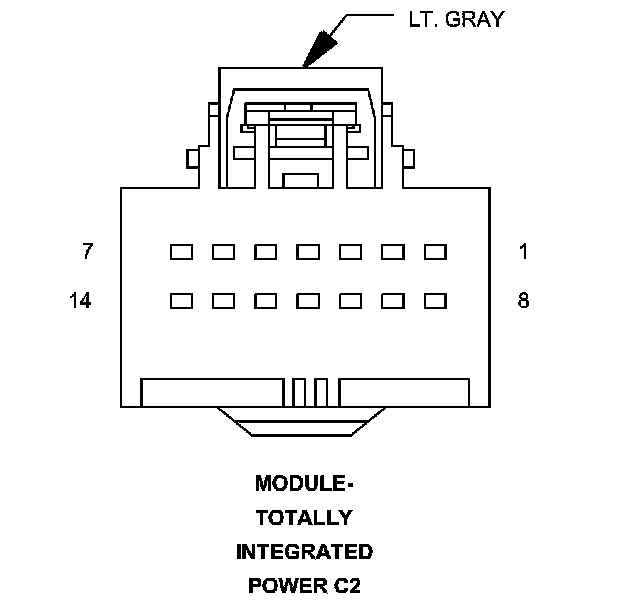

Connector C2 - (ENGINE COMPARTMENT) 14 WAY

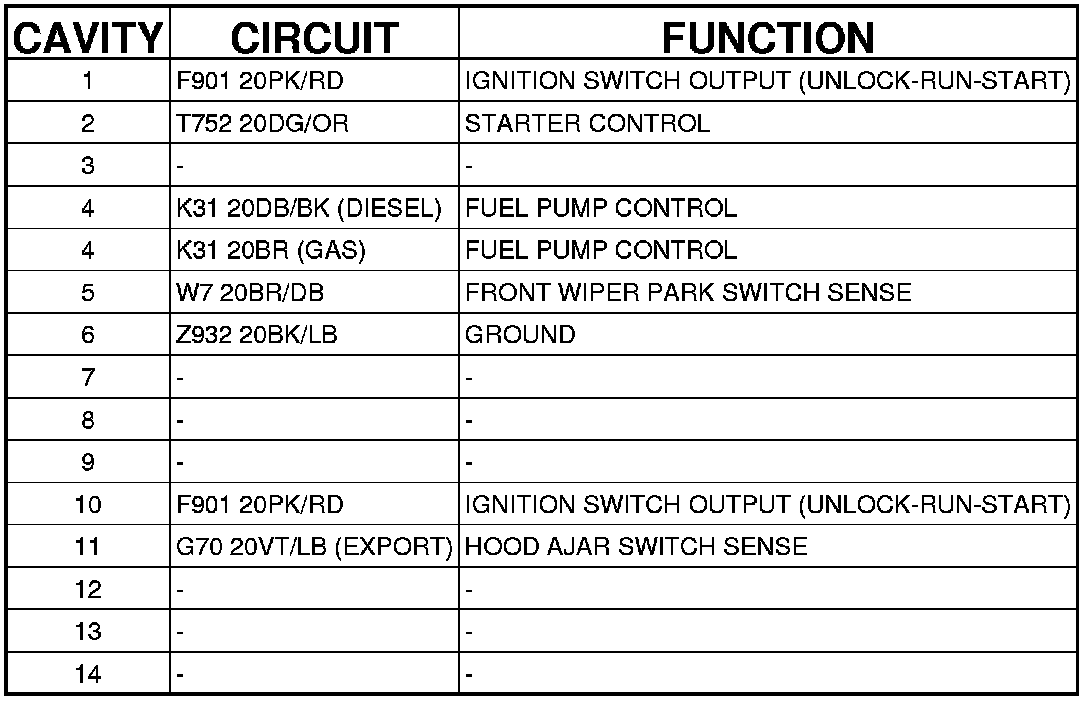

MODULE-TOTALLY INTEGRATED POWER - (ENGINE COMPARTMENT) 14 WAY
