Totally Integrated Power Module C4 (Engine Compartment) 10 Way

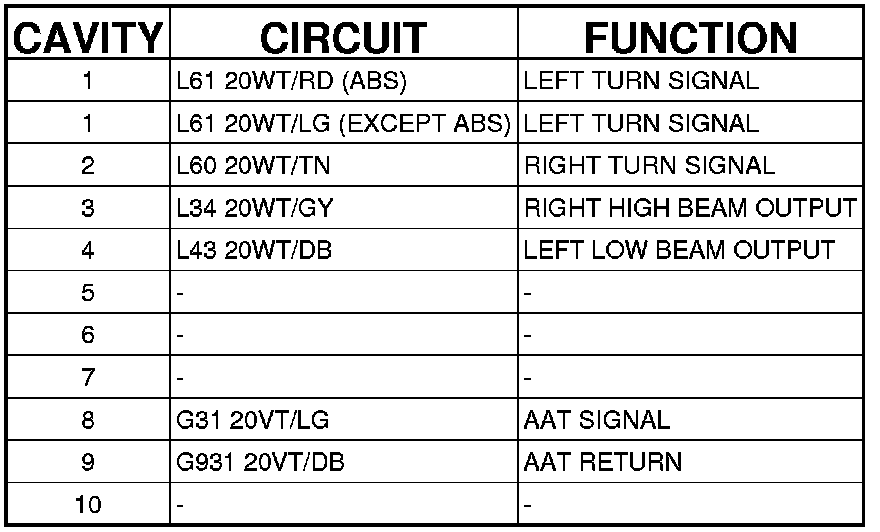

Connector C4 - (ENGINE COMPARTMENT) 10 WAY

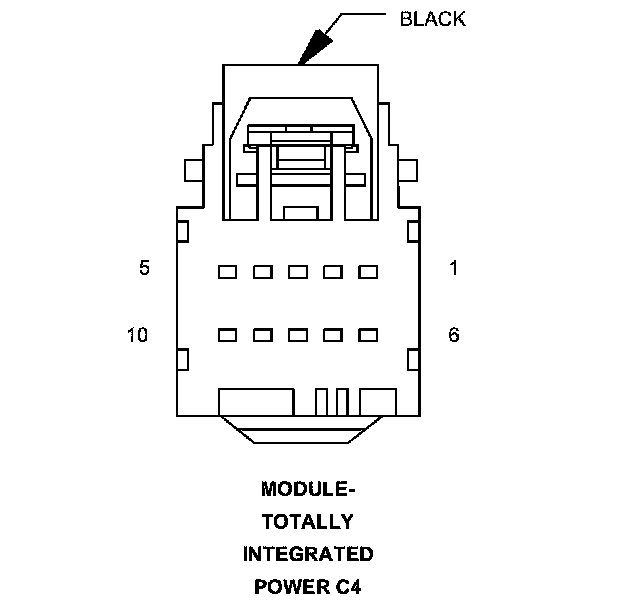

MODULE-TOTALLY INTEGRATED POWER - (ENGINE COMPARTMENT) 10 WAY
