Trailer Connector

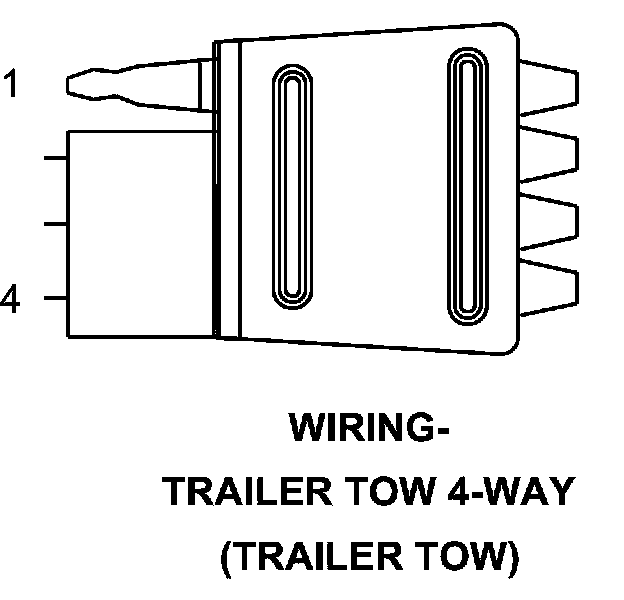

Connector (TRAILER TOW) - (TRAILER TOW) 4 WAY

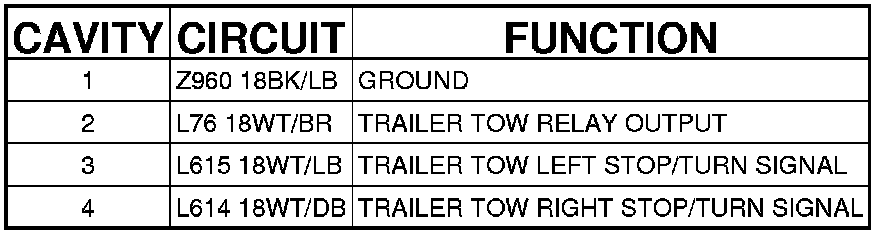

WIRING-TRAILER TOW 4-WAY (TRAILER TOW) - (TRAILER TOW) 4 WAY
