Totally Integrated Power Module 8W-13-33

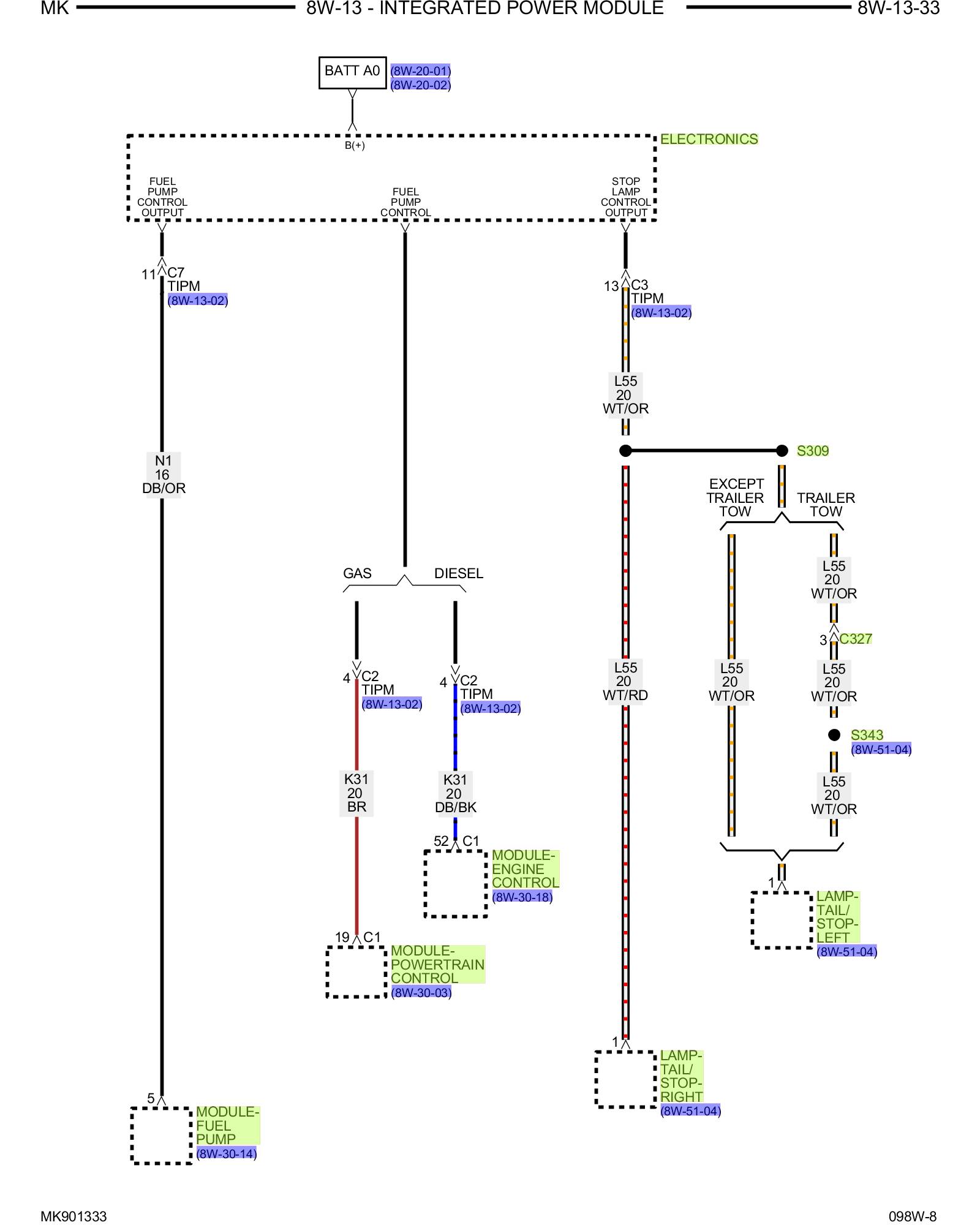

TOTALLY INTEGRATED POWER MODULE - Diagram 33
PLEASE NOTE: Some diagrams may appear to be missing because of gaps in the number sequences. These "gaps" are actually for diagrams that do not apply to the vehicle model selected.





Next Diagram Totally Integrated Power Module 8W-13-34

Previous Diagram Totally Integrated Power Module 8W-13-32

Other Diagrams: Other diagrams referred to by number (i.e. 8W-70-2, etc.) within these diagrams can be found at the vehicle level under Diagrams by Number Diagrams By Number
