Accelerator Pedal Position Sensor: Diagrams

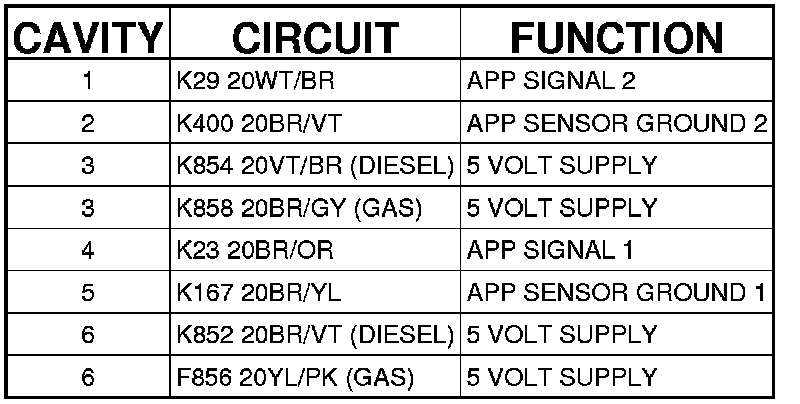

Connector - (BODY) 6 WAY




SENSOR-ACCELERATOR PEDAL POSITION - (BODY) 6 WAY
