Fuel Level Sensor: Diagrams






Connector (FWD) - (BODY) 5 WAY

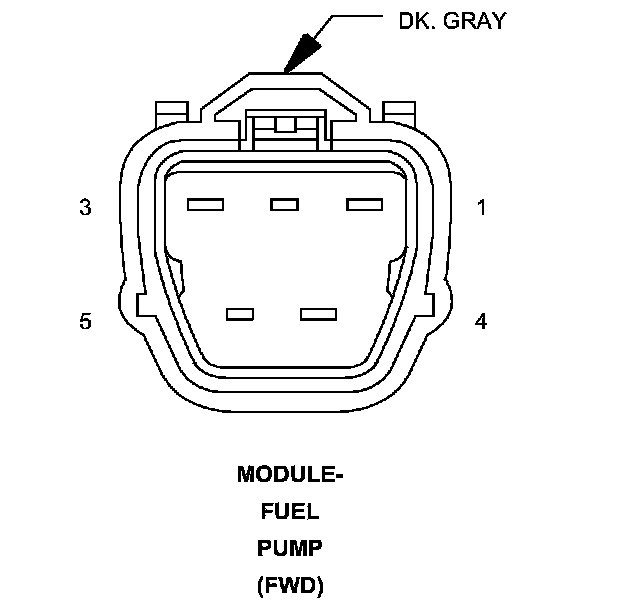

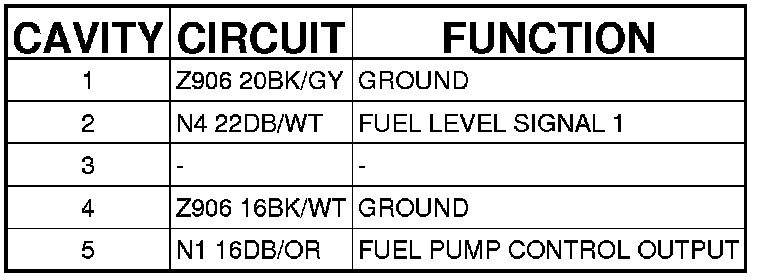

MODULE-FUEL PUMP (FWD) - (BODY) 5 WAY
