Hands Free Module C2 (Instrument Panel) 10 Way

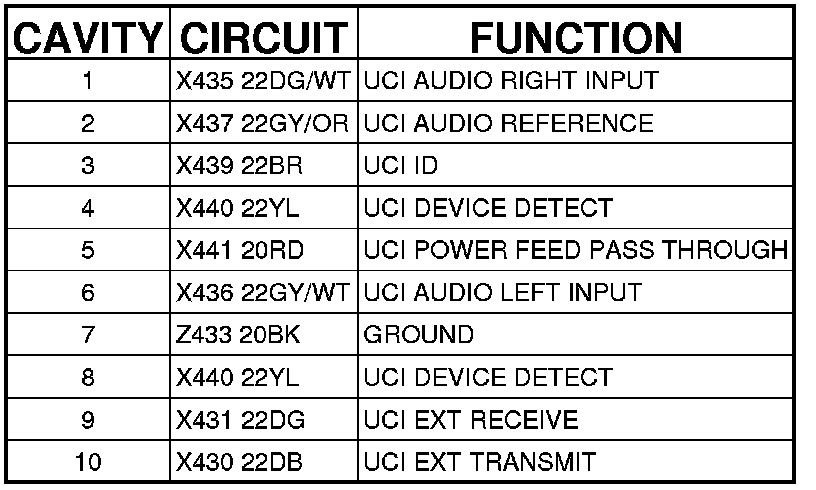

Connector C2 - (INSTRUMENT PANEL) 10 WAY

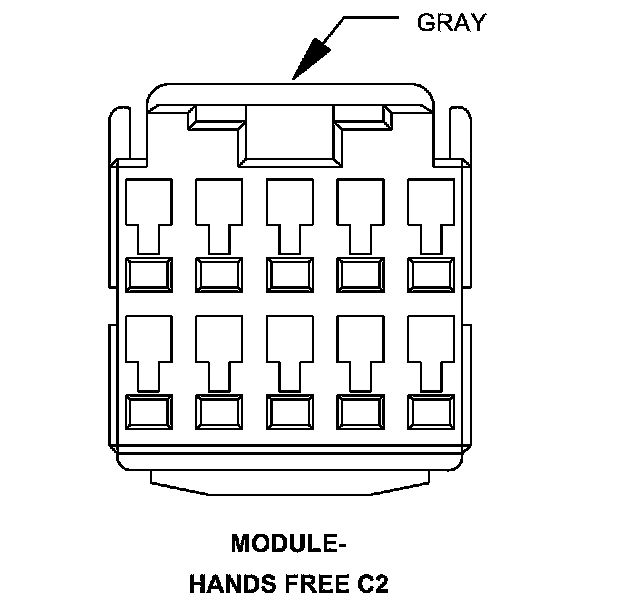

MODULE-HANDS FREE - (INSTRUMENT PANEL) 10 WAY
