Blower Motor Resistor






Connector - (INSTRUMENT PANEL) 4 WAY

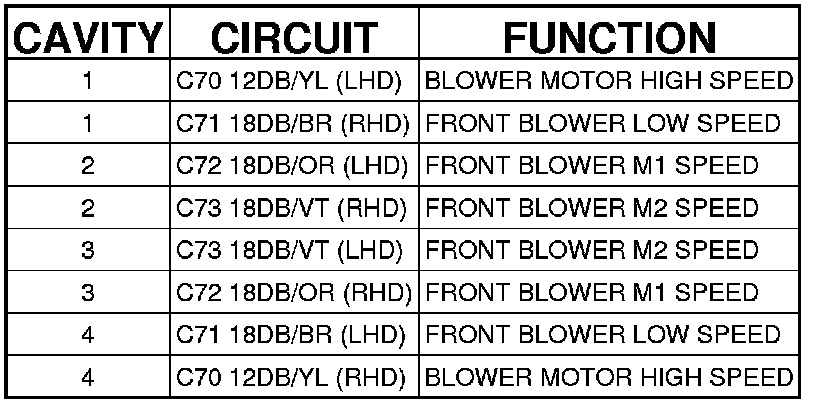

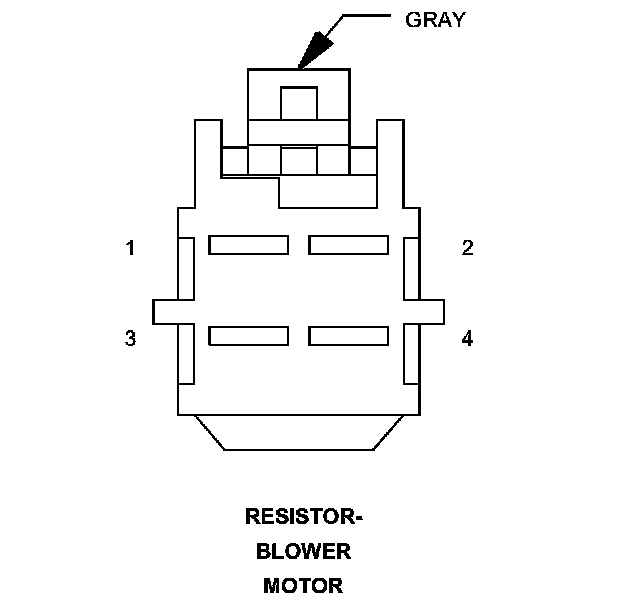

RESISTOR-BLOWER MOTOR - (INSTRUMENT PANEL) 4 WAY
