Totally Integrated Power Module C1 (Engine Compartment) 13 Way

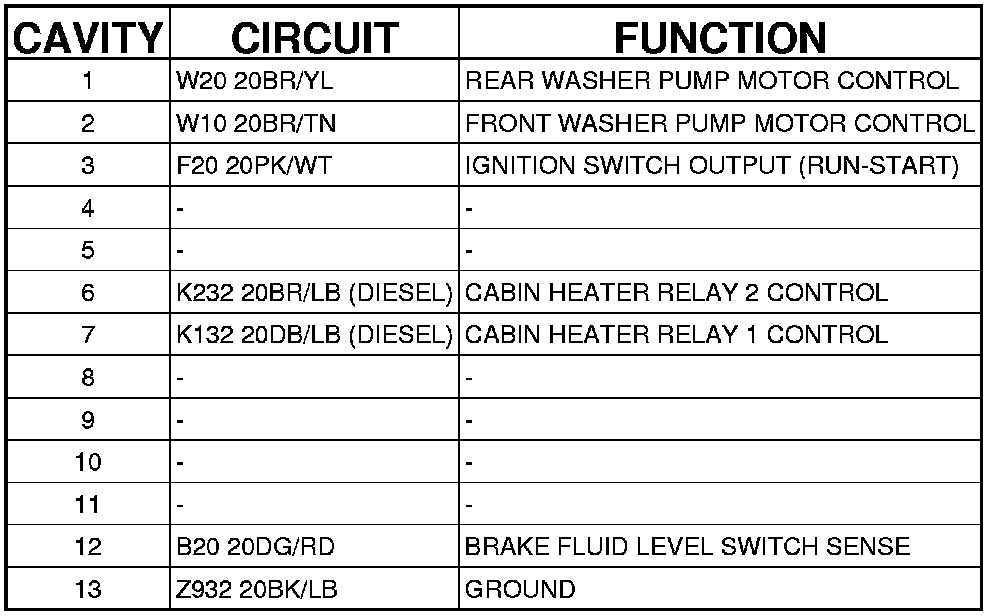

Connector C1 - (ENGINE COMPARTMENT) 13 WAY

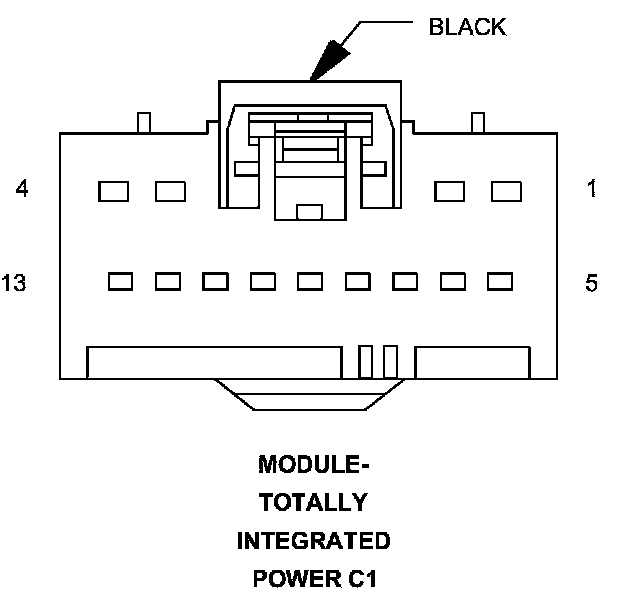

MODULE-TOTALLY INTEGRATED POWER - (ENGINE COMPARTMENT) 13 WAY
