Radiator Cooling Fan Module C2 (Engine Compartment) 2 Way

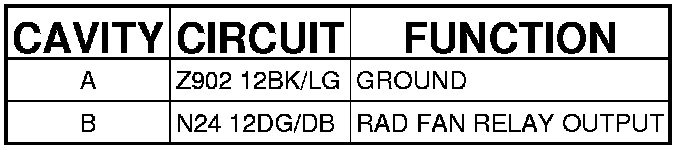

Connector C2 - (ENGINE COMPARTMENT) 2 WAY

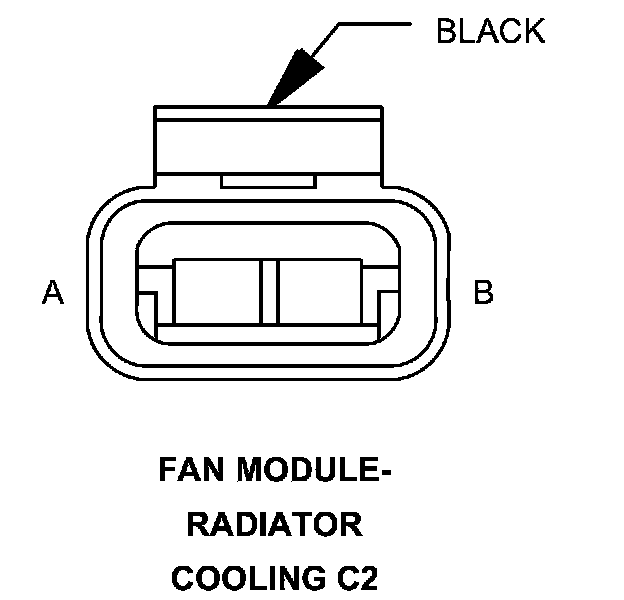

FAN MODULE-RADIATOR COOLING - (ENGINE COMPARTMENT) 2 WAY
